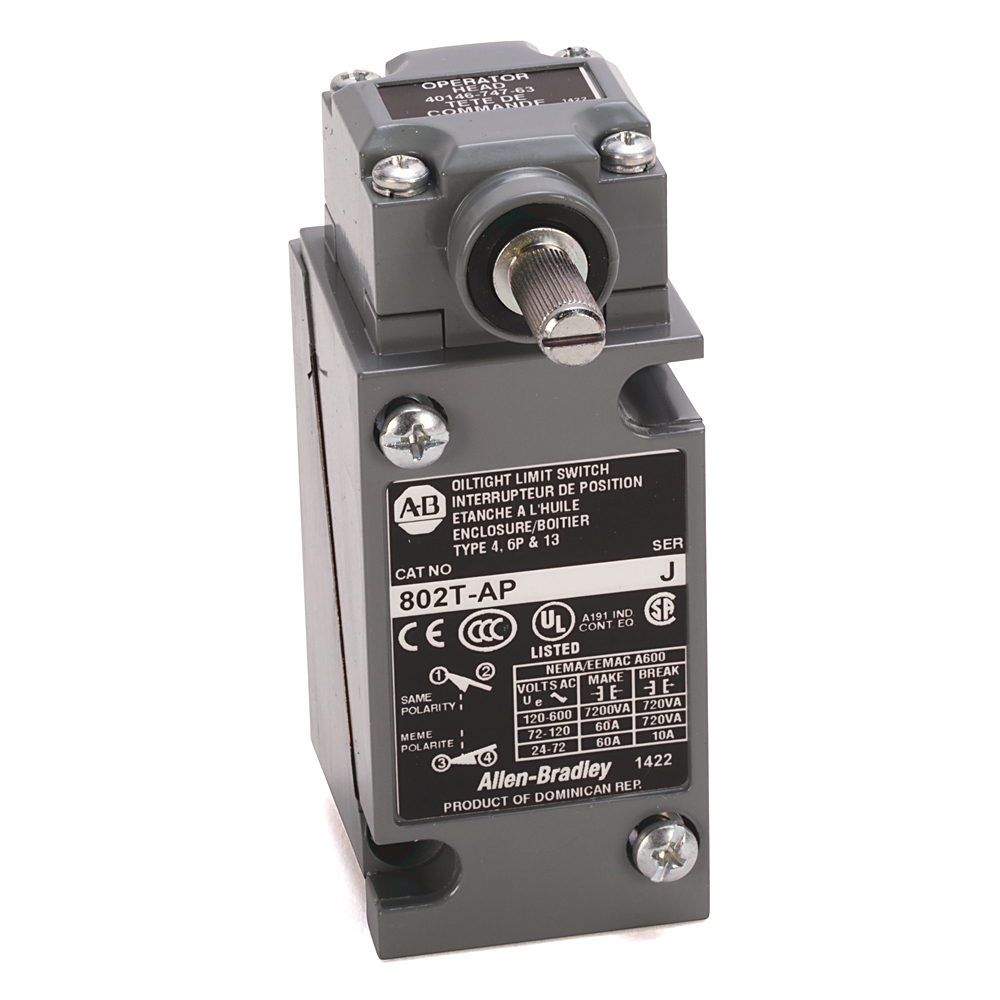

Allen-Bradley 802T-A5P1 Plug-In Oiltight Limit Switch
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 802T-A5P1
North Coast Part # 210932


  • Direct opening action
  • Suitable for machine connectivity and low-voltage circuits
  • Rugged metal construction
  • Proven reliability
  • Alternative to glass-enclosed reed switches or solid state devices
  • Plug-in design
  • Long life and reliability
  • Optimized for low energy use
  • Rugged construction
  • NEMA 6P/IP67 sealing
  • Connect directly to PLC input
  • Snap acting contacts
  • Alternative to oversized power contacts
  • Front mount for simplified mounting


  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Operator Head Only
  • Actuation Type: Lever Type, Spring Return, Standard Operating Torque
  • Number of Circuits: 2-Circuit
  • Mode of Operation: CW and CCW operation
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 18°
  • Torque to Operate Contacts (Max.): 0.29N-m (2.6lb in)
  • Travel to Reset Contacts (Max.): 7°
  • Maximum Travel: 90°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected



UPC 66246808218
GTiN 00662468082181
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-In Oiltight Limit Switch
Applications Switch Body
Family Brand Name Allen Bradley
TC Connection Cable Length Not Applicable,Number of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
Actuator Rotary Lever Arm
Contact Configuration 2 Circuits
Contact Rating A600
Number of Poles 1 Pole
Enclosure Metal
Mounting Type NEMA Style Standard Mounting
Standard CCC,CSA,KC
Connection Type Cable Length Not Applicable,Number Of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
