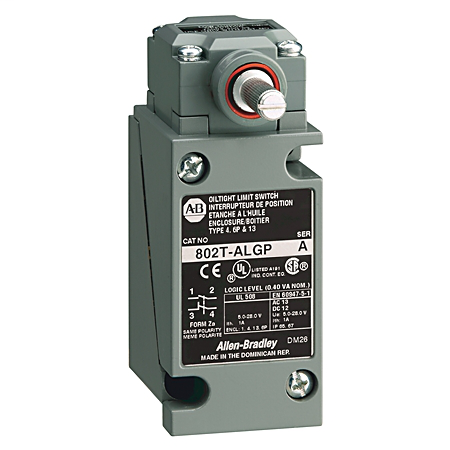

Allen-Bradley 802T-ALGP Metal Plug-In Oiltigh
Product image thumbnail 0
Product image thumbnail 1
$184.71/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802T-ALGP
North Coast Part # 1158945

Features

  • Alternative to oversized power contacts
  • Suitable for machine connectivity and low-voltage circuits
  • Front mount for simplified mounting
  • NEMA 6P/IP67 sealing
  • Rugged construction
  • Long life and reliability
  • Direct opening action
  • Alternative to glass-enclosed reed switches or solid state devices
  • Plug-in design
  • Optimized for low energy use
  • Rugged metal construction
  • Snap acting contacts
  • Connect directly to PLC input
  • Proven reliability

Specifications

  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Low Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, Low Operating Torque
  • Number of Circuits: 2-Circuit
  • Mode of Operation: CW and CCW operation
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 13°
  • Torque to Operate Contacts (Max.): 0.106N-m (0.94lb in)
  • Travel to Reset Contacts (Max.): 7°
  • Maximum Travel: 90°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Overview

UPC 61259844935
GTiN 00612598449354
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-In Oiltight
Applications Full Switch (Head and Body)
Family Brand Name Allen Bradley
TC Connection Conduit Entry
Actuator Rotary Lever Arm
Contact Configuration 2 Circuits
Contact Rating 0.40 VA
Number of Poles 2 Pole
Enclosure Metal
Material Metal
Mounting Type Standard
Temperature Rating -18 to 110 C
Number of Circuits 2
Standard KC
Connection Type Cable Length Not Applicable,Number Of Pins Not Applicable,Conduit Entry,Connector Type Not Applicable
