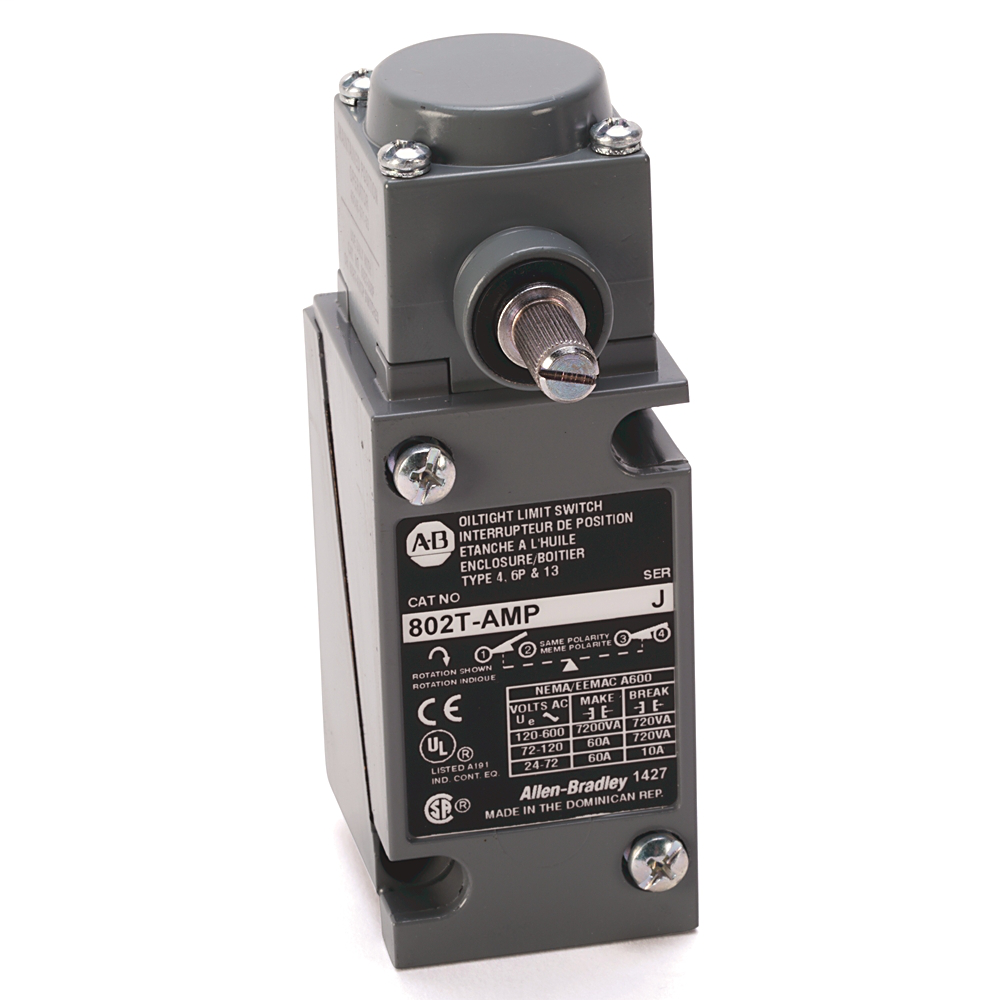

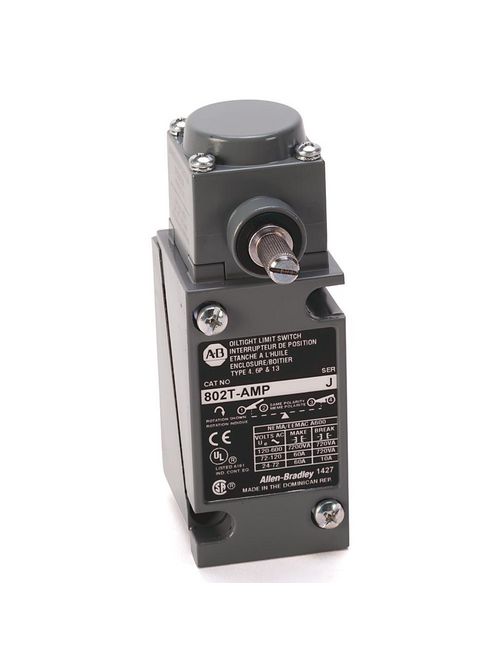

Allen-Bradley 802T-AMTP1 Plug-In Oiltight Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 802T-AMTP1
North Coast Part # 65019


  • Long life and reliability
  • Alternative to oversized power contacts
  • NEMA 6P/IP67 sealing
  • Alternative to glass-enclosed reed switches or solid state devices
  • Front mount for simplified mounting
  • Proven reliability
  • Connect directly to PLC input
  • Optimized for low energy use
  • Suitable for machine connectivity and low-voltage circuits
  • Snap acting contacts
  • Rugged metal construction
  • Plug-in design
  • Rugged construction
  • Direct opening action


  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Operator Head Only
  • Actuation Type: Lever Type, Maintained Contact
  • Number of Circuits: 4-Circuit
  • Mode of Operation: CW and CCW operation
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 61°
  • Torque to Operate Contacts (Max.): 0.32N-m (2.8lb in)
  • Travel to Reset Contacts (Max.): 28°
  • Maximum Travel: 88°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


GTiN 00662468080729
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-In Oiltight Limit Switch
Applications Switch Body
Family Brand Name Allen Bradley
TC Connection Cable Length Not Applicable,Number of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
Actuator Rotary Lever Arm
Contact Configuration 4 Circuits
Contact Rating A300
Number of Poles 2 Pole
Enclosure Metal
Product UPC 66246808072
Mounting Type NEMA Style Standard Mounting
Standard CCC,KC
Connection Type Cable Length Not Applicable,Number Of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
