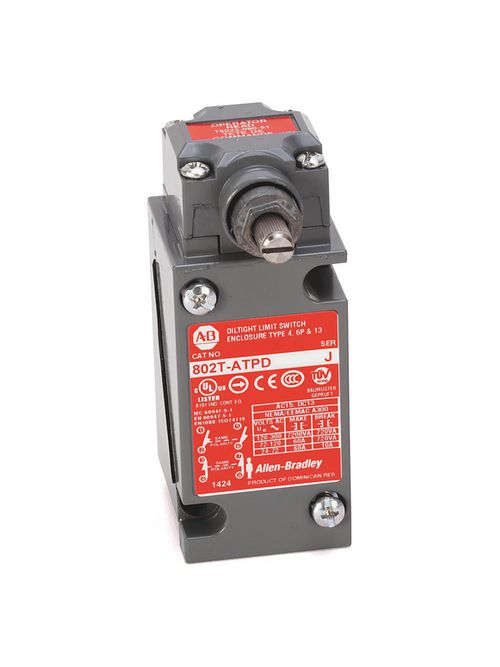

Allen-Bradley 802T-ATPJ1 Plug-In Oiltight Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 802T-ATPJ1
North Coast Part # 666760


Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, Standard Operating Torque
  • Number of Circuits: 4-Circuit
  • Mode of Operation: CW and CCW operation
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 13°
  • Torque to Operate Contacts (Max.): 0.45N-m (4lb in)
  • Travel to Reset Contacts (Max.): 7°
  • Maximum Travel: 90°


  • Connection Options: Mini-Type Receptacle (J1 Wiring)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


GTiN 00662072687918
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-In Oiltight Limit Switch
Applications Full Switch (Head & Body)
Family Brand Name Allen Bradley
TC Connection Cable Length Not Applicable,9 Pins,Quick Disconnect Connector,Mini
Actuator Rotary Lever Arm
Contact Configuration 4 Circuits
Contact Rating A300
Number of Poles 2 Pole
Enclosure Metal
Product UPC 66207268791
Mounting Type NEMA Style Standard Mounting
Standard CCC,KC
Connection Type Cable Length Not Applicable,9 Pins,Quick Disconnect Connector,Mini
