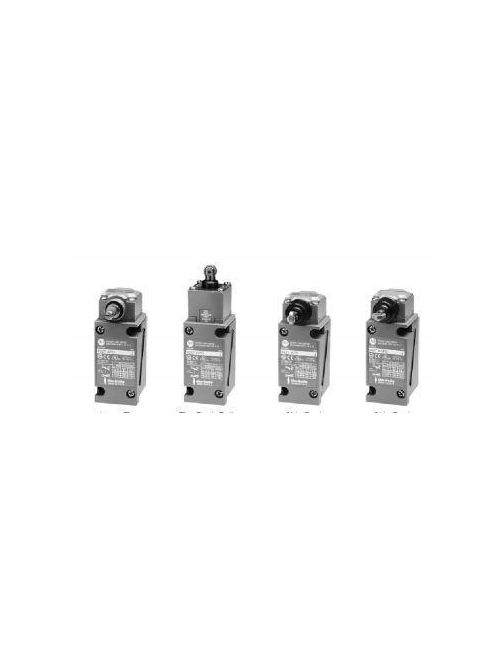

Allen-Bradley 802T-AY5 Standard Limit Switch
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802T-AY5
North Coast Part # 348452


Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Non-Plug-In
  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, Standard Operating Torque
  • Number of Circuits: 2-Circuit
  • Mode of Operation: CW and CCW operation
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 16.5°
  • Torque to Operate Contacts (Max.): 0.34N-m (3lb in)
  • Travel to Reset Contacts (Max.): 8°
  • Maximum Travel: 43°


  • Connection Options: STO Cable, 5ft.

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


UPC 66207329174
Item Long Description Standard Limit Switch
GTiN 00662073291749
Size Standard Non-Plug-In
Operating Temperature -18 C
Type Standard Limit Switch
Applications Full Switch (Head And Body)
Family Brand Name Allen Bradley
TC Connection 5 ft. Cable,Not Applicable,Cable Lead,Not Applicable
Actuator Rotary Lever Arm
Contact Configuration 2 Circuits
Contact Rating A600
Number of Poles 1 Pole
Enclosure Metal
Action Snap Acting,Standard Contacts
Mounting Type Standard Mounting
Standard KC
Connection Type 5 Ft. Cable,Not Applicable,Cable Lead,Not Applicable
