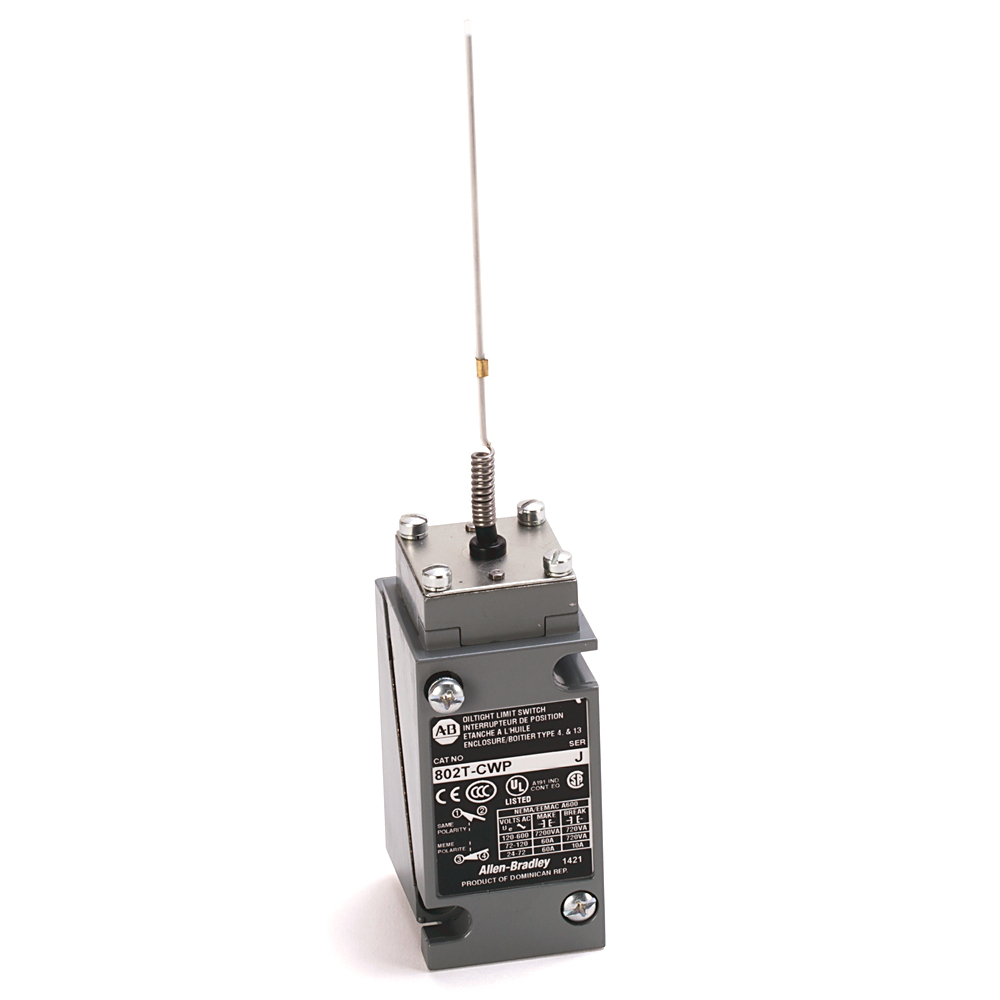

Allen-Bradley 802T-CWP1 NEMA Type 4/13 Oiltight Construction Plug-In Cat Whisker Wire 2 Circuit Head Only Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$150.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802T-CWP1
North Coast Part # 17859

Features

  • Alternative to glass-enclosed reed switches or solid state devices
  • Optimized for low energy use
  • Front mount for simplified mounting
  • NEMA 6P/IP67 sealing
  • Rugged metal construction
  • Rugged construction
  • Suitable for machine connectivity and low-voltage circuits
  • Plug-in design
  • Connect directly to PLC input
  • Alternative to oversized power contacts
  • Direct opening action
  • Long life and reliability
  • Proven reliability
  • Snap acting contacts

Specifications

  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Operator Head Only
  • Actuation Type: Cat Whisker, Wire
  • Number of Circuits: 2-Circuit
  • Mode of Operation: N/A (Push Type/Wobble/Whisker/Neutral)
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 21°
  • Torque to Operate Contacts (Max.): 0.06N-m (8oz in)
  • Travel to Reset Contacts (Max.): 14°
  • Maximum Travel: 28°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Overview

UPC 66246808271
Item Long Description Metal Plug-In Oiltight Limit Switch
GTiN 00662468082716
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-In Oiltight Limit Switch
Applications Switch Body
Family Brand Name Allen Bradley
TC Connection Cable Length Not Applicable,Number of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
Actuator Cat Whisker
Contact Configuration 2 Circuits
Contact Rating A600
Number of Poles 1 Pole
Enclosure Metal
Mounting Type NEMA Style Standard Mounting
Standard KC
Connection Type Cable Length Not Applicable,Number Of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
