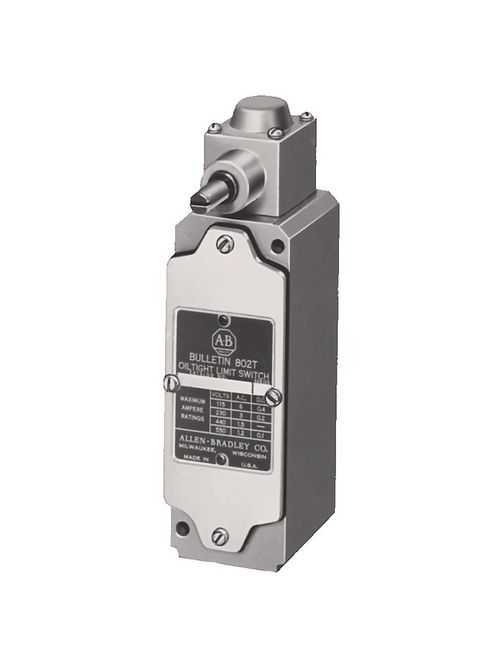

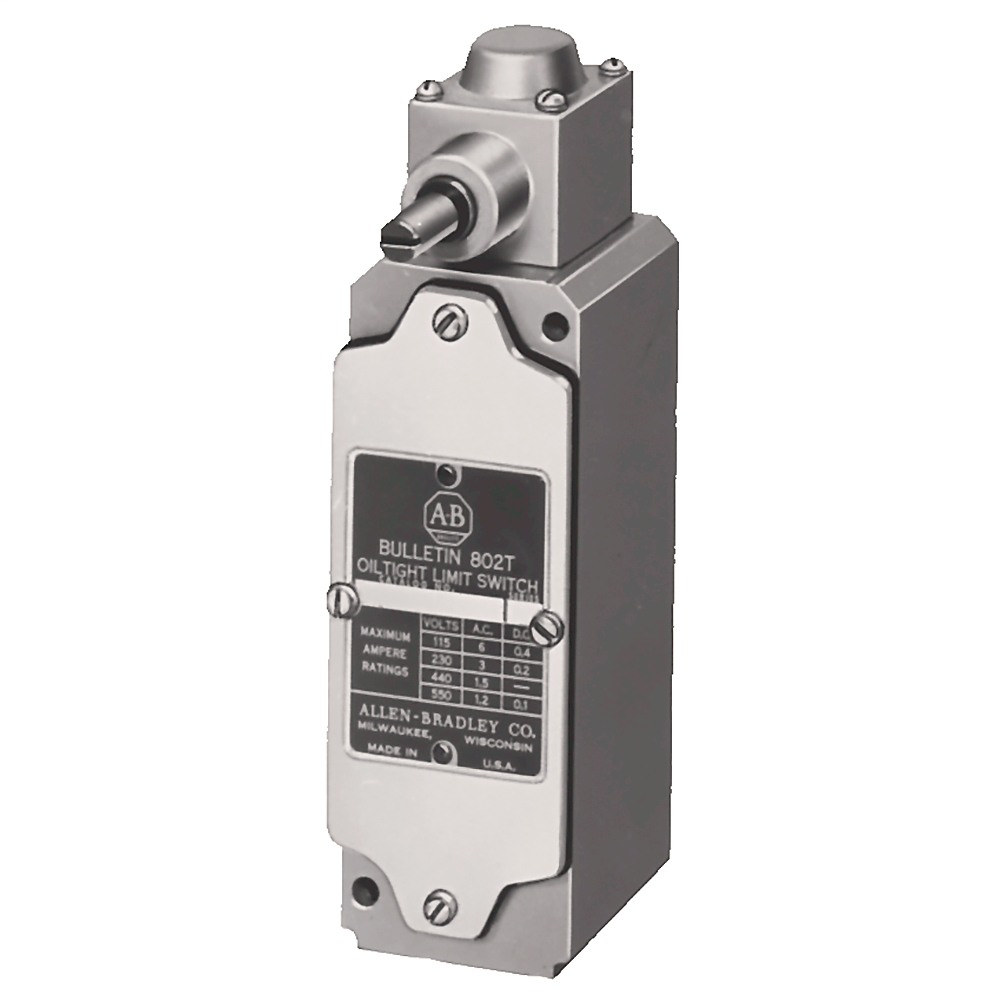

Allen-Bradley 802T-HTH Standard Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802T-HTH
North Coast Part # 598491


  • Plug-in design
  • Alternative to glass-enclosed reed switches or solid state devices
  • Connect directly to PLC input
  • Rugged metal construction
  • Front mount for simplified mounting
  • Rugged construction
  • Suitable for machine connectivity and low-voltage circuits
  • Proven reliability
  • NEMA 6P/IP67 sealing
  • Snap acting contacts
  • Alternative to oversized power contacts
  • Direct opening action
  • Optimized for low energy use
  • Long life and reliability


  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Non-Plug-In
  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, High Operating Torque
  • Number of Circuits: 4-Circuit, Horizontal
  • Mode of Operation: CW and CCW operation
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 6°
  • Torque to Operate Contacts (Max.): 0.68N-m (6lb in)
  • Travel to Reset Contacts (Max.): 3°
  • Maximum Travel: 50°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


UPC 66207319780
Item Long Description Standard Limit Switch
GTiN 00662073197805
Size Horizontal Non-Plug-In
Operating Temperature -18 C
Type Standard Limit Switch
Applications Full Switch (Head And Body)
Family Brand Name Allen Bradley
TC Connection Not Applicable,Not Applicable,Conduit Entry,Not Applicable
Actuator Rotary Lever Arm
Contact Configuration 4 Circuits
Contact Rating A600
Number of Poles 2 Pole
Enclosure Metal
Action Snap Acting,Standard Contacts
Mounting Type Standard Mounting
Standard KC
Connection Type Not Applicable,Not Applicable,Conduit Entry,Not Applicable
