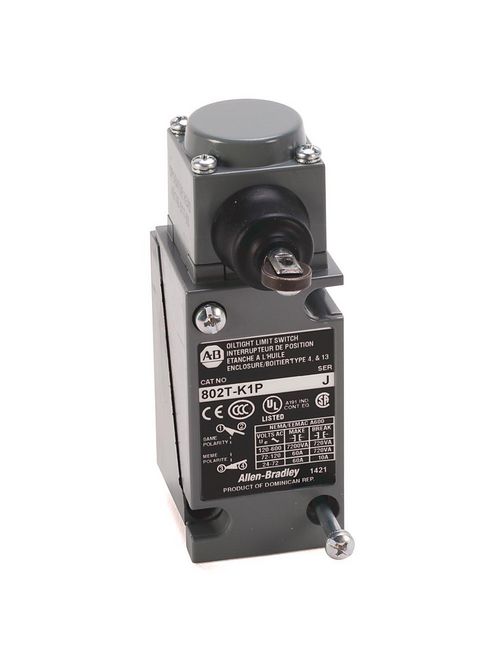

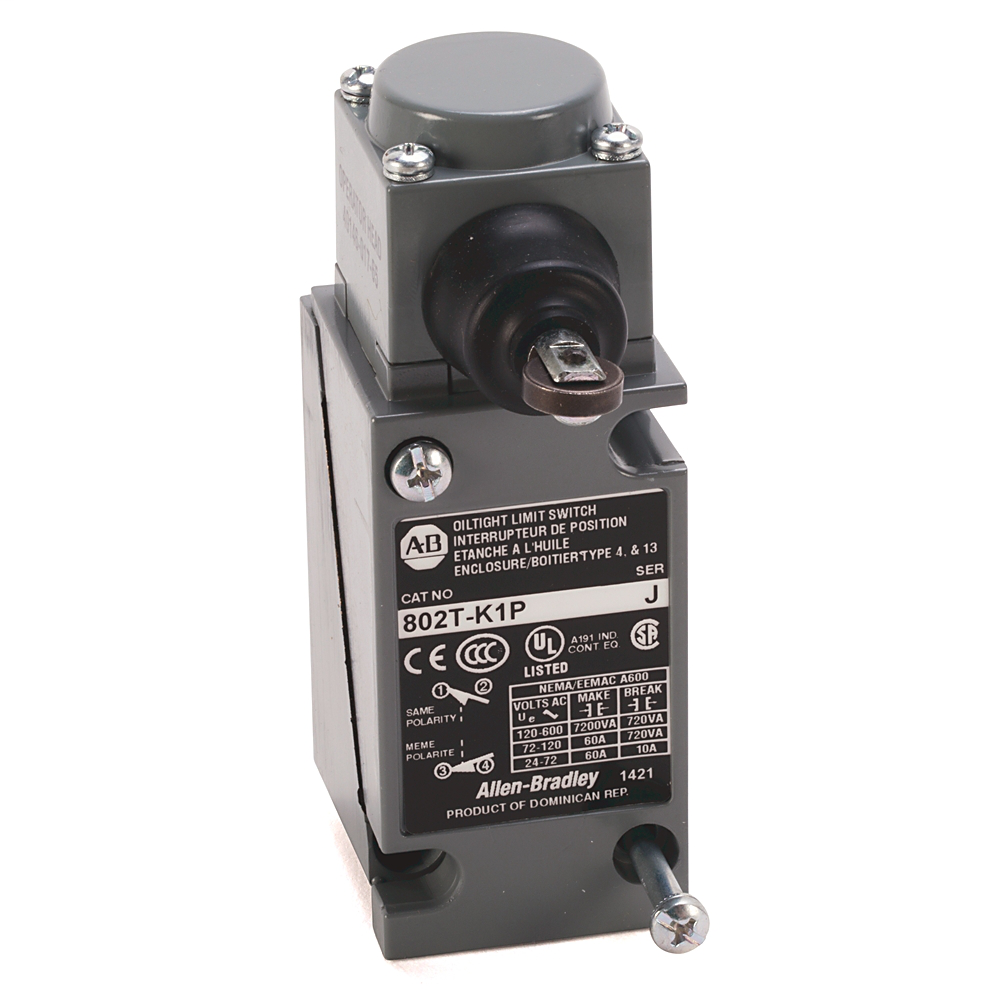

Allen-Bradley 802T-K1TP1 Plug-In Oiltight Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802T-K1TP1
North Coast Part # 341544


  • Suitable for machine connectivity and low-voltage circuits
  • Optimized for low energy use
  • Proven reliability
  • Snap acting contacts
  • Rugged construction
  • Alternative to glass-enclosed reed switches or solid state devices
  • Connect directly to PLC input
  • Direct opening action
  • Alternative to oversized power contacts
  • Front mount for simplified mounting
  • NEMA 6P/IP67 sealing
  • Plug-in design
  • Long life and reliability
  • Rugged metal construction


  • Type: Oiltight Limit Switches

Switch Data

  • Energy Rating: Standard Energy
  • Plug-In or NonPlug-In Style: Plug-In
  • Switch Components: Operator Head Only
  • Actuation Type: Side Push Roller, Horizontal
  • Number of Circuits: 4-Circuit
  • Mode of Operation: N/A (Push Type/Wobble/Whisker/Neutral)
  • Safety Switch: No
  • Travel to Operate Contacts (Nominal): 3.3mm (0.131in)
  • Torque to Operate Contacts (Max.): 24.9N (5.6lb)
  • Travel to Reset Contacts (Max.): 1.3mm (0.052in)
  • Maximum Travel: 5.7mm (0.226in)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


UPC 66246808366
Item Long Description Metal Plug-In Oiltight Limit Switch
GTiN 00662468083669
Size 802T Plug-in Style
Operating Temperature -18 C
Type Plug-In Oiltight Limit Switch
Applications Switch Body
Family Brand Name Allen Bradley
TC Connection Cable Length Not Applicable,Number of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
Actuator Horizontal Side Push Roller
Contact Configuration 4 Circuits
Contact Rating A300
Number of Poles 2 Pole
Enclosure Metal
Mounting Type NEMA Style Standard Mounting
Standard KC
Connection Type Cable Length Not Applicable,Number Of Pins Not Applicable,Not Applicable,Connector Type Not Applicable
