A-B 802T-W25M 802T Limit Switch Lev

Features

• NEMA Type 4 watertight construction
• Connect directly to PLC input
• Teach and learn angle
• Pre-wired and factory sealed
• Corrosion resistant
• Alternative to oversized power contacts
• Rugged metal construction
• Submersible
• NEMA 6P/IP67 sealing
• Multiple operator styles
• Meets requirement for NEMA 1, 4X, 6P and 15 enclosures
• Multiple operator styles available:
• Configurable counters with resets on each output
• High contact reliability in contaminated atmospheres
• Proven reliability
• Programmable travel to reset (hysteresis)
• Class I, Groups B, C, and D or Class II, Groups E, F and G
• Operating heads are mountable in four positions, 90° apart
• Snap acting contacts
• Optimized for low energy use
• Each output programmable to N.O. or N.C.
• NEMA Enclosure Type 13
• Plug-in design
• Suitable for machine connectivity and low-voltage circuits
• Rugged construction
• Dual outputs with distinct programmable angles to operate
• Direct opening action
• Front mount for simplified mounting
• Long life and reliability
• Alternative to glass-enclosed reed switches or solid state devices
• Direct connection to DeviceNet® network
• Class I, groups B, C and D or Class II, groups E, F and G or Class III
• Autobaud

Specifications

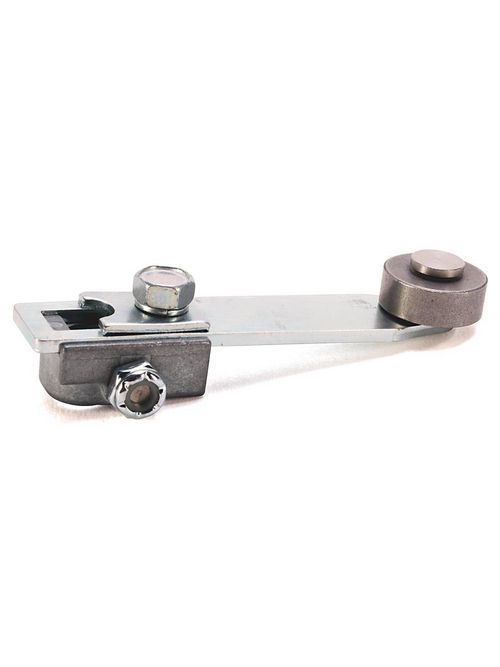

Operating Lever Data

• Lever Type: Roller Lever
• Adjustable or Non-Adjustable: Non-Adjustable
• Radius: 2.5 In
• Roller Material: Steel
• Roller Diameter: 0.75 In
• Roller Width: 0.75 In
• Roller Position: Roller On Rear

Additional Information

• Message: Operating Lever 802T-W3F Should Not Be Used With 802M-NPY5 or 802M-ASY5 Switches.
• Message: Do Not Use 802T-W7, 802T-W7A, 802T-W7B On Maintained Contact Limit Switches.
