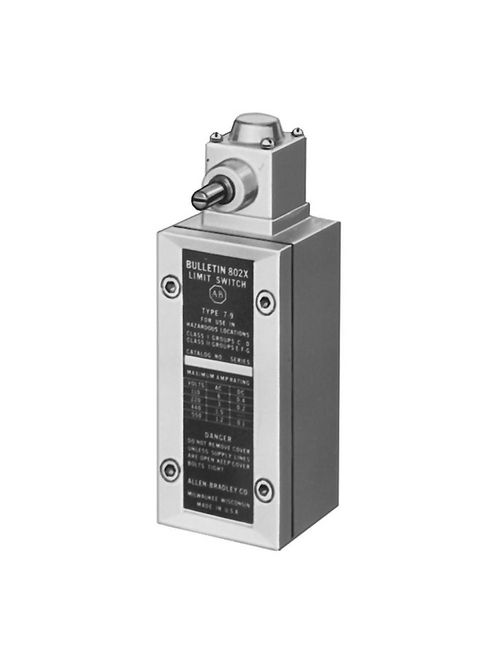

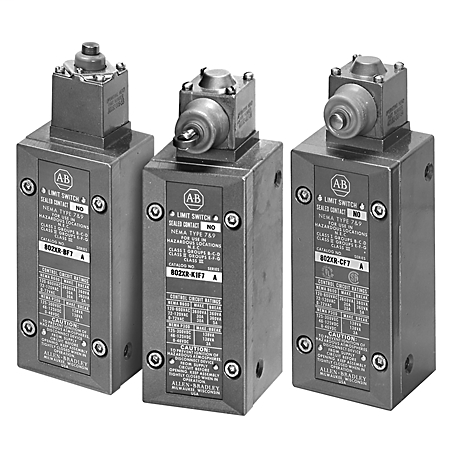

Allen-Bradley 802XR-AF7 Sealed Hazard Locator Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$510.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802XR-AF7
North Coast Part # 215704

Features

  • Multiple operator styles
  • Class I, Groups B, C, and D or Class II, Groups E, F and G

Specifications

Switch Data

  • Actuation Type: Lever Type, Spring Return, Standard Operating Torque
  • Mode of Operation: CW and CCW operation
  • Contact Type: N.O.
  • Travel to Operate Contacts (Nominal): 16°
  • Torque to Operate Contacts (Max.): 0.34N-m (3lb in)
  • Travel to Reset Contacts (Max.): 9°
  • Maximum Travel: 42°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Categories

Overview

UPC 78118083751
Item Long Description Sealed Haz Loc Limit Switch
GTiN 00781180837517
Size Hazardous Location
Operating Temperature -29 C
Type Sealed Hazardous Location
Applications Full Switch (Head And Body)
Family Brand Name Allen Bradley
TC Connection Conduit Entry
Actuator Rotary Lever Arm
Contact Configuration 1 NC, 1 NO
Contact Rating B600
Number of Poles 1 Pole
Enclosure Metal
Material Metal
Mounting Type 1/2 in NPT
Temperature Rating -29 to 121 C
Number of Circuits 2
Action Snap Acting, Standard Contacts
Standard CSA,CUL,KC,UL
Connection Type Conduit Entry
