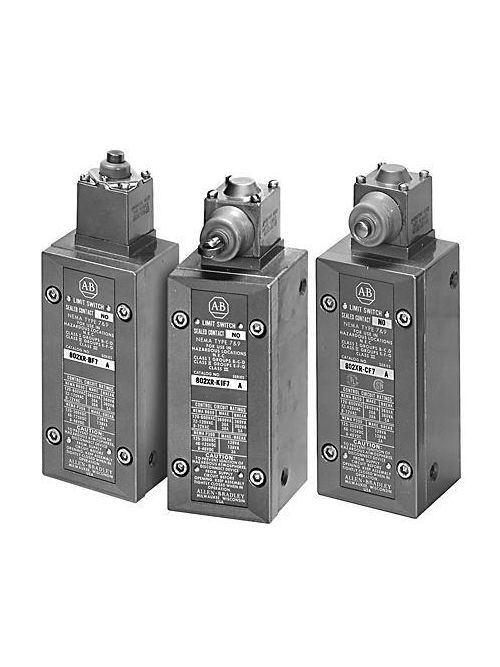

A-B 802XR-DC7 Sealed Haz Loc Limit
Product image thumbnail 0
Product image thumbnail 1
$557.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802XR-DC7
North Coast Part # 218047

Features

  • Class I, Groups B, C, and D or Class II, Groups E, F and G
  • Multiple operator styles

Specifications

Switch Data

  • Actuation Type: Top Push Roller
  • Mode of Operation: N/A (Push Type/Wobble/Whisker/Neutral)
  • Contact Type: N.C.
  • Travel to Operate Contacts (Nominal): 1.75mm (0.069in)
  • Torque to Operate Contacts (Max.): 15.6N (3.5lb)
  • Travel to Reset Contacts (Max.): 0.71mm (0.028in)
  • Maximum Travel: 5.1mm (0.202in)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Overview

UPC 66207329235
GTiN 00662073292357
Size Hazardous Location
Operating Temperature -29 C
Type Sealed Haz Loc Limit Switch
Applications Full Switch (Head And Body)
Family Brand Name Allen Bradley
TC Connection Conduit Entry
Actuator Top Push Roller
Contact Configuration 2 Circuits
Contact Rating B600
Number of Poles 1 Pole
Enclosure Metal
Mounting Type 1/2 In. NPT
Standard KC
Connection Type Conduit Entry
