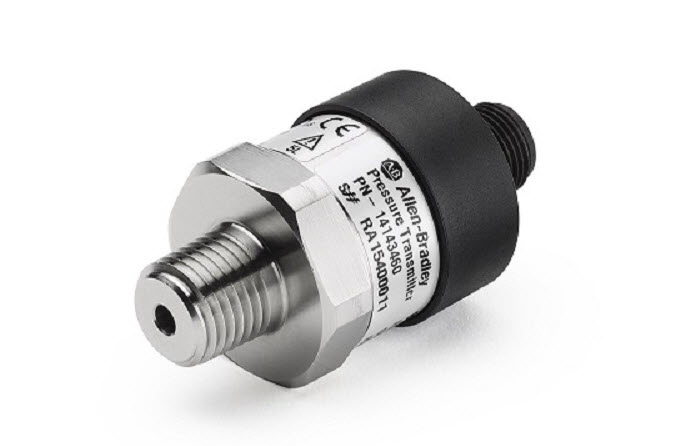

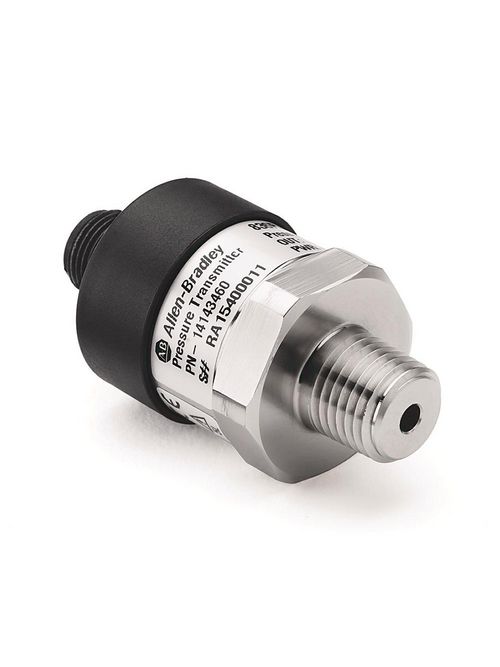

A-B 836P-N3NMGB10A-D4 Standard Soli
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$200.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 836P-N3NMGB10A-D4
North Coast Part # 1428714

Features

  • Provides compact form factor
  • IP67 enclosure rating
  • Provides rotatable display 180°
  • Offers a rugged, corrosion-resistant 316L stainless steel sensing element

Specifications

Product Selection

  • Bulletin Number: 836P - Solid-State Pressure Sensor
  • Sensor Model Type: Standard
  • Display Type: Non-Display
  • Low Pressure Range: 30 in Hg ( -1.01 bar )
  • Process Connection Type: 1/4 NPT Male
  • Measurement Type: Gauge
  • Upper Pressure Range: 100 psi (6.89 bar)
  • Output Type: 4-20 mA Analog Only
  • Connection type: 4-Pin DC Micro(M12)
  • IO Link Enabled: No

Overview

UPC 88950846328
Item Long Description Standard Solid-State Pressure Sensor
GTiN 00889508463285
Type Solid-State Pressure Sensor
Applications Gauge
Connection Type 4-Pin DC Micro(M12)
Family Brand Name Allen Bradley
TC Connection 4 Pin DC Micro (M12)
Output 4-20mA Analog Only
Voltage 30 Volt
Mounting Type 1/4 NPT Male
Standard CCC,CE,CUL,KC,RCM,UL
Display Type No Display
