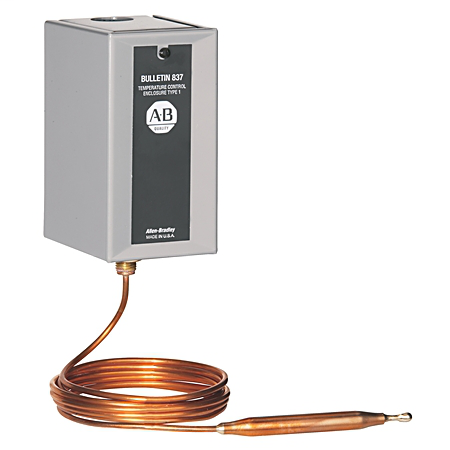

A-B 837-A4AX503 Electro-Mech Temp C
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 837-A4AX503
North Coast Part # 1165398


Temperature Controls

  • Hazardous Location: No
  • Device Style: Style A, Remote Bulb and Capillary
  • Custom Trip or Reset Setting: Default Factory Setting

Temperature Specifications

  • Temperature Specifications: 190 degrees F


  • Enclosure Type: Type 1 enclosure

Bulb And Capillary

  • Type of Bulb and Capillary: Copper Bulb and Capillary
  • Length of Capillary: 3 feet


  • Factory Modifications: No Modifications

Modified Industrial Control Options

  • LED option: No LED pilot option


  • Standard Contacts: Standard contact block is supplied - Single-pole, double-throw, snap action. Supplied when a contact block suffix is not added to the catalog number. Non-inductive ratings, 5A, 240V. 3A, 600V. Control circuit ratings AC - 125 VA, 24...600V. DC - 57.5 VA, 115...230V.
  • Note===>: NOTE: NEMA does not rate contacts to switch low voltage and current. Bulletin 837 Styles A, H, and V Temperature Controls are supplied with silver contacts. The devices are designed to deliver high force snap action to the contacts. This provides exceptional contact fidelity at 24V DC I/O card current level entry when the integrity of the enclosure is maintained.


UPC 66207338486
Item Long Description Electro-Mech Temp Cntrl Sw
GTiN 00662073384861
Family Brand Name Allen Bradley
