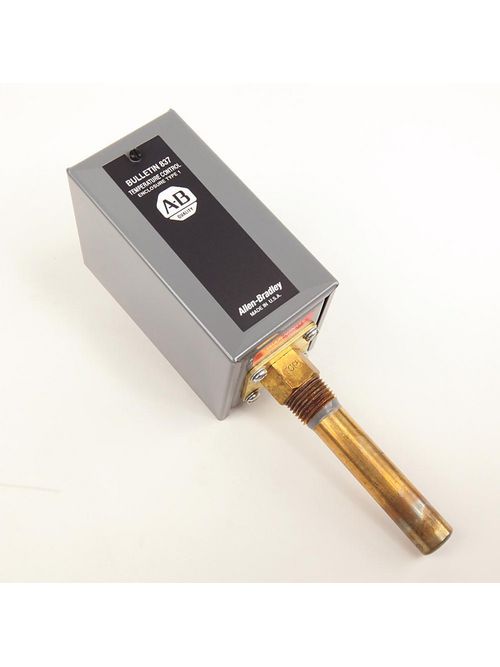

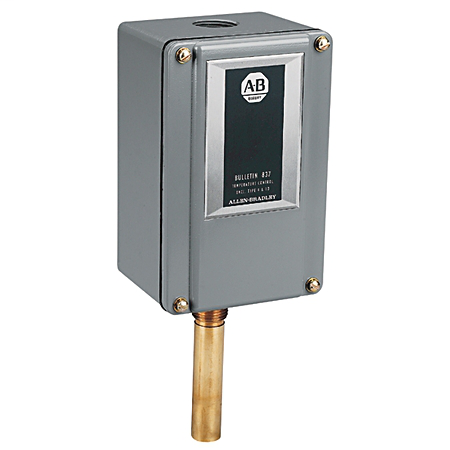

Allen-Bradley 837-V2J Electro Mechanical Temperature Control Switch

Features

• Wide variety of contact arrangements
• Standard capillary length is 6 ft with custom lengths available
• Direct vertical and horizontal immersion available
• Adjustable differential from 2...87 °F
• Adjustable ranges from -60...570 °F
• Protective armor available in bronze or stainless steel

Specifications

Temperature Controls

• Hazardous Location: No
• Device Style: Style V, Direct Vertical Immersion
• Custom Trip or Reset Setting: Default Factory Setting

Temperature Specifications

• Temperature Specifications: 200 degrees F

Enclosure

• Enclosure Type: Type 4 & 13 Metallic Aluminum enclosure

Modifications

• Factory Modifications: No Modifications

Modified Industrial Control Options

• LED option: No LED pilot option

Notes

• Standard Contacts: Standard contact block is supplied - Single-pole, double-throw, snap action. Supplied when a contact block suffix is not added to the catalog number. Non-inductive ratings, 5A, 240V. 3A, 600V. Control circuit ratings AC - 125 VA, 24...600V. DC - 57.5 VA, 115...230V.
• Note===>: NOTE: NEMA does not rate contacts to switch low voltage and current. Bulletin 837 Styles A, H, and V Temperature Controls are supplied with silver contacts. The devices are designed to deliver high force snap action to the contacts. This provides exceptional contact fidelity at 24V DC I/O card current level entry when the integrity of the enclosure is maintained.
