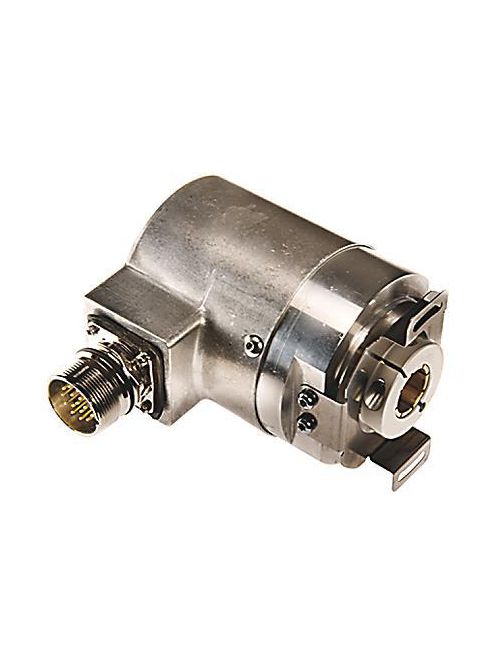

Allen Bradley 842HR-MJDZ115FWYD Sine Cosine Encoder
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 842HR-MJDZ115FWYD
North Coast Part # 488766


  • Absolute feedback for position control
  • Compatible with Hiperface interface
  • Internal diagnostic functions
  • Digital bi-directional RS-485 interface
  • Sine/cosine differential interface
  • High resolution incremental feedback for speed control


  • Mounting: Square Flange, 3/8 inch solid shaft
  • Connection: M23 17-pin Connector

Encoder Data

  • Number Of Turns: Multi-turn (4096 turns)
  • Mounting Configuration: Square Flange, 3/8 inch solid shaft
  • PowerSupply: 5...12V DC
  • Connector Options: M23 17-pin Connector


UPC 61259845036
GTiN 00612598450367
Type Sine Cosine/Serial Encoder
Applications Square Flange
Mounting Type Square Flange, 3/8 Inch Solid Shaft
Connection Type M23 17-pin Connector
Family Brand Name Allen Bradley
TC Connection MS23 17-Pin
Power Supply 5-12 V
Voltage 5-12 Volt
