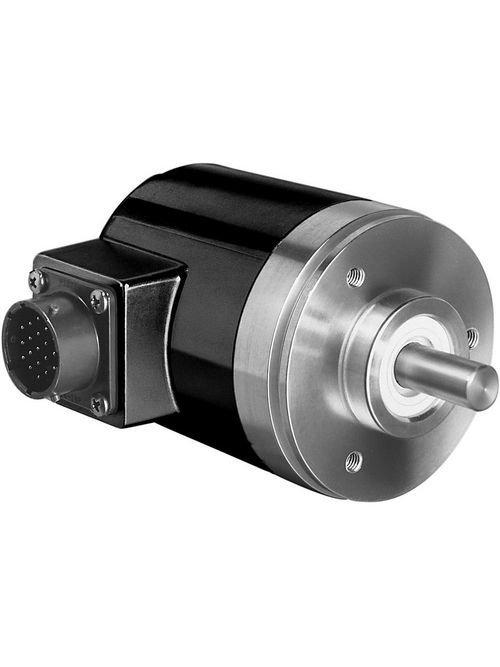

Allen-Bradley 845D-SJDZ25ANFW5 1 Turn Absolute Encoder
Product image thumbnail 0
Product image thumbnail 1
$1,790.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 845D-SJDZ25ANFW5
North Coast Part # 151794

Features

  • Electronic zero set pin
  • 85 °C (185 °F) operating temperature
  • Optional latch command input for discrete I/O
  • Field-selectable direction control

Specifications

  • Mounting: Square Flange
  • Shaft Diameter: 3/8 Inch Diameter
  • Connection: Radial Connector (Side) With Mate

Encoder Data

  • Output Code Type: Natural Binary
  • Resolution: 1024 Counts Per Revolution
  • Latch Option: No Latch
  • Mounting Configuration: Square Flange
  • Shaft Options: 3/8 Inch Diameter
  • Power Supply: 8-24V DC Unregulated
  • Output Configuration: NPN Open Collector 24V DC Max.
  • NEMA Rating: NEMA 4
  • Connection Type: Radial Connector (Side) With Mate

Overview

UPC 66207378679
GTiN 00662073786795
Type 845D 1 Turn Absolute Encoder
Applications NEMA 4Natural Binary
Mounting Type Square Flange
Connection Type Radial Connector (Side) With Mate
Family Brand Name Allen Bradley
Output 24V DC Max NPN Open Collector
Power Supply 8-24V DC Unregulated
