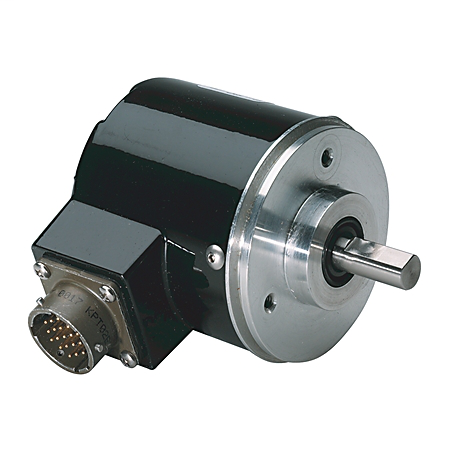

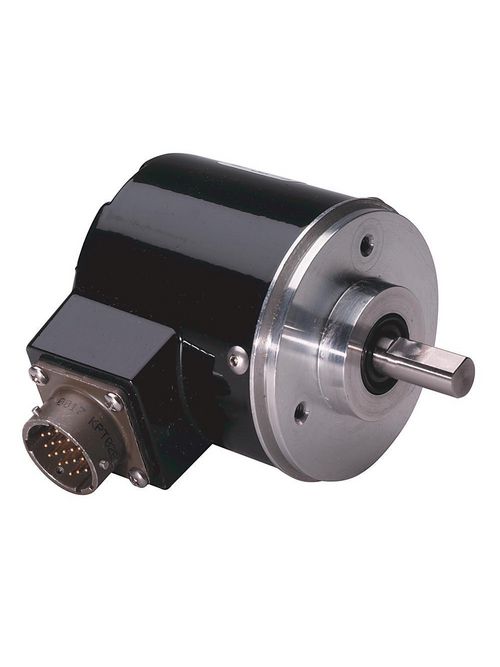

Allen-Bradley 845G-F3G8HC0256A 1 Turn Absolute Encoder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 845G-F3G8HC0256A
North Coast Part # 155001


  • Reverse polarity protection
  • 0…85 °C operating temperature


  • Mounting: Square Flange

Encoder Data

  • Resolution: 8 bit/0-255 Counts Per Revolution
  • Output Code Type: Gray Code
  • Mounting Configuration: Square Flange
  • Power Supply: 8-24V DC
  • Output Configuration: NPN Open Collector 24V DC Max
  • Output Logic: High True
  • Connection Type: Axial 19-Pin


UPC 66207262419
Item Long Description Single Turn HPAbsolute Encoder
GTiN 00662072624197
Type Single Turn HPAbsolute Encoder
Applications 8 B/0-255
Mounting Type Square Flange
Connection Type Axial 19-Pin
Family Brand Name Allen Bradley
TC Connection 19 Pin Axial
Output 24V DC Max NPN Open Collector,Gray Code
Power Supply 8-24V DC
