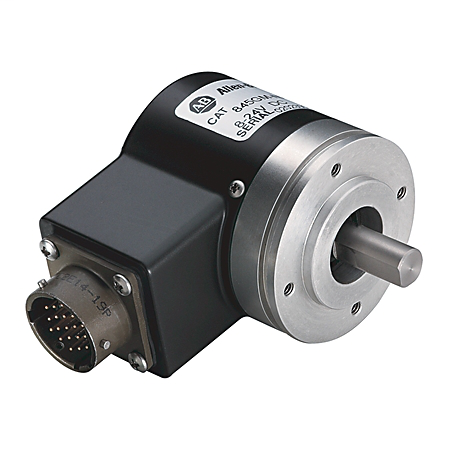

Allen-Bradley 845GM-F3GAHP0512R Single Turn A
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 845GM-F3GAHP0512R
North Coast Part # 827016


  • Reverse polarity protection
  • 8…15 bit resolution (256…32768 counts per revolution)
  • Absolute gray code, natural binary or binary coded decimal (BCD) output
  • 0…85 °C operating temperature
  • Open collector, TTL, push-pull, or SSI outputs


Encoder Data

  • Resolution: 9 bit/0-511 Counts Per Revolution
  • Output Code Type: Gray Code
  • Mounting Configuration: Square Flange
  • Shaft Size: 3/8in w/flat
  • Power Supply: 10-30V DC
  • Output Configuration: Push-Pull (7272)
  • Output Logic: High True
  • Connection Type: Radial 19-Pin
  • Mounting: Square Flange
  • Shaft Diameter: 3/8in w/flat
  • Connection: Radial 19-Pin


UPC 88495193544
GTiN 00884951935440
Type Single Turn Absolute Encoder
Mounting Type Square Flange
Connection Type Radial 19-Pin
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection Radial 19-Pin
Output Push-Pull 7272
Power Supply 10-30V DC
