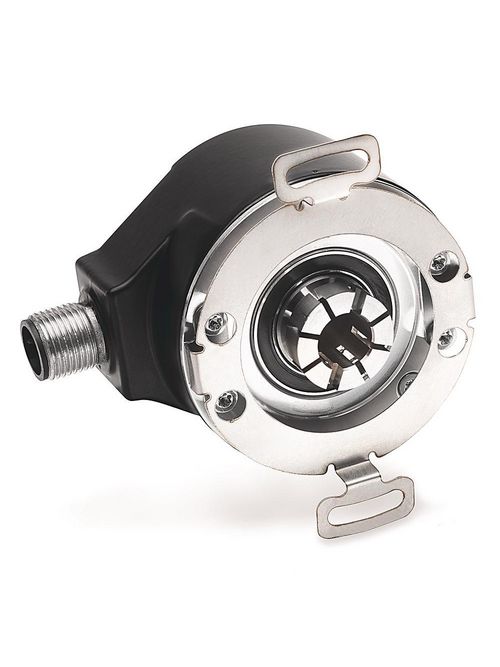

A-B 847A-Q32C-RP02500 Incremental E
Product image thumbnail 0
Product image thumbnail 1
$611.05/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 847A-Q32C-RP02500
North Coast Part # 1427132

Features

  • Provides integer resolution from 1...65,536 counts per resolution
  • Includes compact 2- and 2.5-inch housing

Specifications

  • Resolution (Pulses per Revolution): 2500

Encoder Data

  • Encoder Diameter/Type: 2 inch Diameter, Blind Hollow Shaft
  • Mounting Configuration: 3-Point Mounting
  • Shaft Size: 3/8 inch Diameter Metal Hollow Shaft
  • Power Supply: 8-30 Volt DC
  • Output Configuration: 8-30 Volt Line Driver,HTL (B-Leads-A, CW, Z gated with BN)
  • Exit Type: Radial Exit
  • Connector Cable Type: 1.5m (4.92 ft) Cable

Overview

UPC 88717280495
GTiN 00887172804953
Size 2" Diameter, Blind Hollow
Type Blind Hollow Shaft
Range 16385-32768
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection 1.5 m (4.92 ft) Cable,Radial Exit
Output 8 - 30 V Line Driver, HTL (B Leads A, CW, Z Gated with BN)
Connection Type 1.5 m Cable, Radial Exit
Blade Dimensions 2 in Dia
Operating Cycles 16385 - 32768
Voltage 8-30 Volt
Mounting Type 3-Point Mounting
Standard C-TICK,CE,CUL,UL
