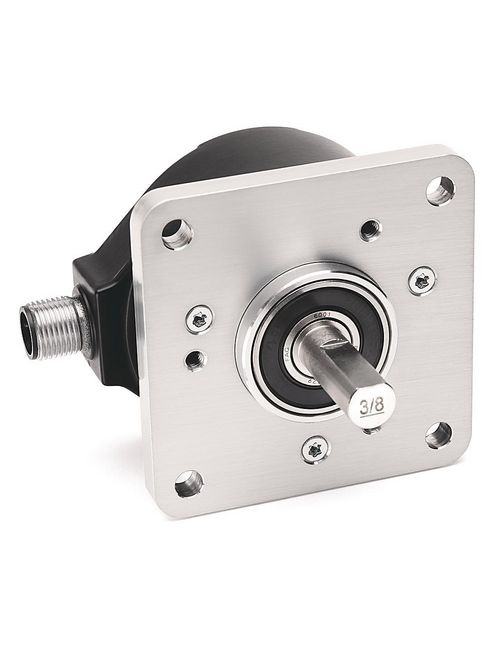

A-B 847H-DN1A-RG01024 Incremental E
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$947.61/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 847H-DN1A-RG01024
North Coast Part # 1162385

Features

  • Provides integer resolution from 1...65,536 counts per resolution
  • Includes compact 2- and 2.5-inch housing

Specifications

  • Resolution (Pulses per Revolution): 1024

Encoder Data

  • Encoder Diameter/Type: 2.5 inch Diameter, Solid Shaft
  • Mounting Configuration: Standard Square Flange
  • Shaft Size: 3/8 inch Diameter Shaft with Flat
  • Power Supply: 4.5-5.5 Volt DC
  • Output Configuration: 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN)
  • Exit Type: Radial Exit
  • Connector Cable Type: MS Connector, 10-Pin with mating connector

Categories

Overview

UPC 88717280511
Item Long Description Incremental Encoder, 2.5" Diameter, Solid Shaft, Standard Square Flange, 3/8 Diameter Shaft with Flat, 4.5-5.5 V DC, 4.5-5.5 V Line Driver (TTL), Radial Exit, MS 10-Pin w/ Mating Connector, B leads A, CW, Z gated with BN, 1024 PPR
GTiN 00887172805110
Size 2.5" Diameter, Solid Shaft
Type Incremental Encoders
Range 00001-16384
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection MS 10-Pin w/ Mating Connector,Radial Exit
Output 4.5-5.5 V Line Driver (TTL)
Voltage 4.5-5.5 Volt
Mounting Type Standard Square Flange
Standard C-TICK,CE,CUL,KC,UL
Connection Type MS 10-Pin W/ Mating Connector,Radial Exit
