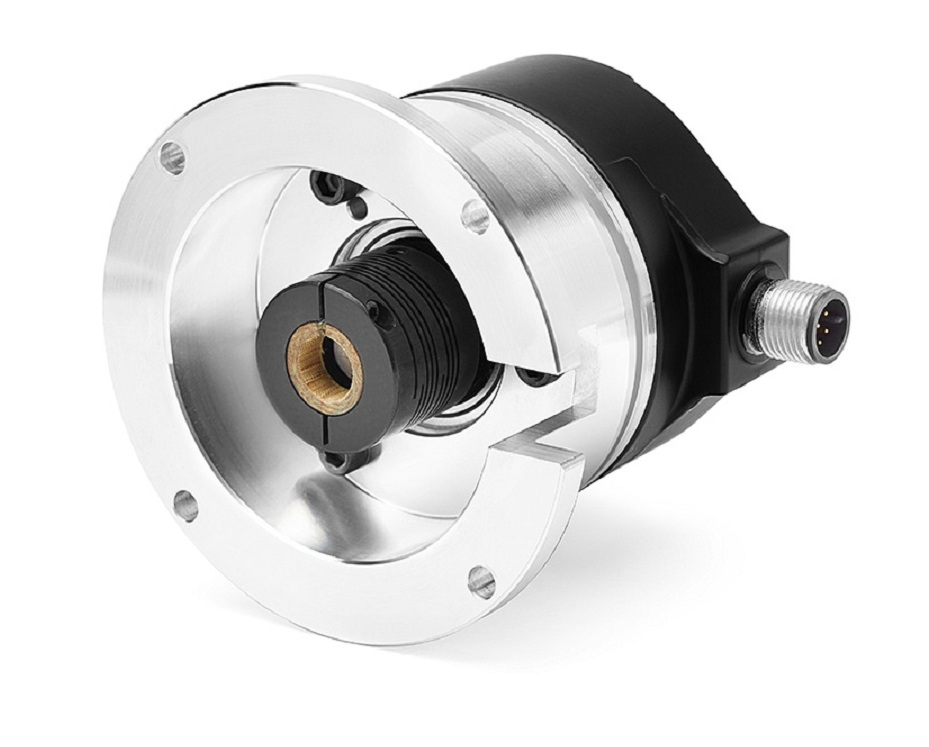

A-B 847H-FG26-RG01024 Incremental E
$1,028.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 847H-FG26-RG01024
North Coast Part # 1277192

Specifications

Encoder Data

  • Encoder Diameter/Type: 2.5 inch Diameter, Solid Shaft
  • Mounting Configuration: Bell Housing and Coupler
  • Shaft Size: 3/8 inch Bore Bellows Coupler (High Performance)
  • Power Supply: 8-30 Volt DC
  • Output Configuration: 8-30 Volt Line Driver,HTL (A-Leads-B, CW, Z gated with A)
  • Exit Type: Radial Exit
  • Connector Cable Type: MS Connector, 10-Pin with mating connector

Overview

UPC 88950802667
GTiN 00889508026671
Size 2.5" Diameter, Solid Shaft
Type Incremental Encoders
Range 00001-16384
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection MS 10-Pin w/ Mating Connector,Radial Exit
Output 8-30V Line Driver (HTL)
Voltage 8-30 Volt
Mounting Type Bell Housing And Coupler
Connection Type MS 10-Pin W/ Mating Connector,Radial Exit
