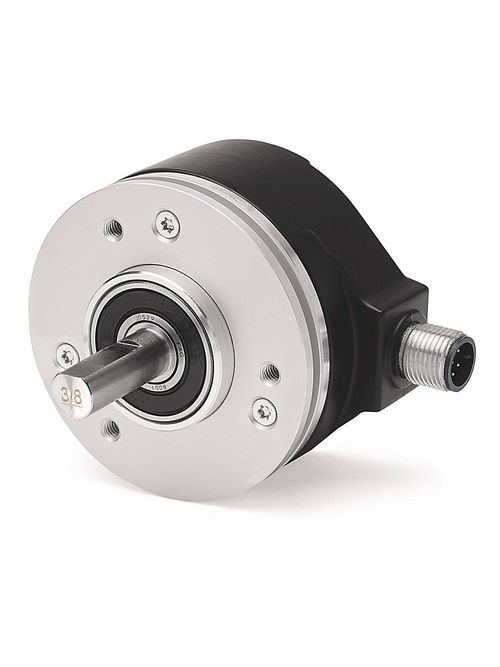

A-B 847H-HN2A-AG05000 Incremental E
Product image thumbnail 0
Product image thumbnail 1
$1,055.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 847H-HN2A-AG05000
North Coast Part # 1164806

Features

  • Provides integer resolution from 1...65,536 counts per resolution
  • Includes compact 2- and 2.5-inch housing

Specifications

  • Resolution (Pulses per Revolution): 5000

Encoder Data

  • Encoder Diameter/Type: 2.5 inch Diameter, Solid Shaft
  • Mounting Configuration: Standard Servo Mount
  • Shaft Size: 3/8 inch Diameter Shaft with Flat
  • Power Supply: 8-30 Volt DC
  • Output Configuration: 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN)
  • Exit Type: Axial Exit
  • Connector Cable Type: MS Connector, 10-Pin with mating connector

Overview

UPC 88717280450
GTiN 00887172804502
Size 2.5" Diameter, Solid Shaft
Type Incremental, Solid Shaft
Range 16385-32768
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection MS 10-Pin w/ Mating Connector,Axial Exit
Output 4.5 - 5.5 V Line Driver (TTL)
Connection Type MS 10-Pin with Mating Connector, Axial Exit
Blade Dimensions 2-1/2 in dia
Voltage 8-30 Volt
Mounting Type Standard Servo Mount
Standard C-TICK,CE,CUL,KC,UL
