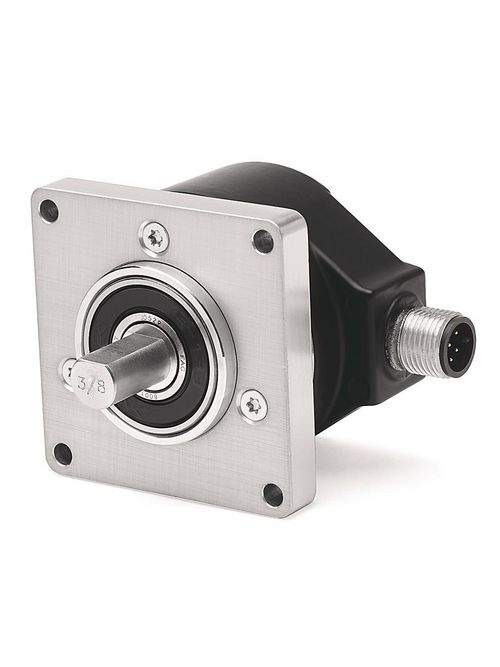

A-B 847T-DN2A-RG03000 Incremental E
Product image thumbnail 0
Product image thumbnail 1
$649.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 847T-DN2A-RG03000
North Coast Part # 1277914

Features

  • Provides integer resolution from 1...65,536 counts per resolution
  • Includes compact 2- and 2.5-inch housing

Specifications

  • Resolution (Pulses per Revolution): 3000

Encoder Data

  • Encoder Diameter/Type: 2 inch Diameter, Solid Shaft
  • Mounting Configuration: Standard Square Flange
  • Shaft Size: 3/8 inch Diameter Shaft with Flat
  • Power Supply: 8-30 Volt DC
  • Output Configuration: 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN)
  • Exit Type: Radial Exit
  • Connector Cable Type: MS Connector, 10-Pin with mating connector

Overview

UPC 88717280506
GTiN 00887172805066
Size 2" Diameter, Solid Shaft
Type Incremental Encoders
Connection Type MS 10-Pin w/ Mating Connector, Radial Exit
Range 16385-32768
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection MS 10-Pin w/ Mating Connector,Radial Exit
Output 4.5 - 5.5 V Line Driver (TTL)
Operating Cycles 16385 - 32768
Voltage 8-30 Volt
Mounting Type Standard Square Flange
Standard C-TICK,CE,CUL,UL
