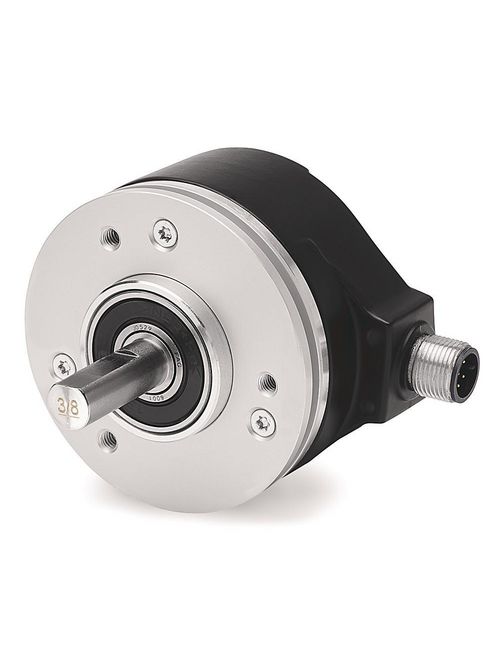

Allen Bradley 847T-HN1A-RH01000 4.5 to 5.5 VDC 50 mA Servo Mount 2-Channel Incremental Encoder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$628.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 847T-HN1A-RH01000
North Coast Part # 1165647

Features

  • Includes compact 2- and 2.5-inch housing
  • Provides integer resolution from 1...65,536 counts per resolution

Specifications

  • Resolution (Pulses per Revolution): 1000

Encoder Data

  • Encoder Diameter/Type: 2 inch Diameter, Solid Shaft
  • Mounting Configuration: Standard Servo Mount
  • Shaft Size: 3/8 inch Diameter Shaft with Flat
  • Power Supply: 4.5-5.5 Volt DC
  • Output Configuration: 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN)
  • Exit Type: Radial Exit
  • Connector Cable Type: MS Connector, 10-Pin

Categories

Overview

UPC 88717280466
Item Long Description Incremental Encoder
GTiN 00887172804663
Size 2" Diameter, Solid Shaft
Type Incremental Encoders
Range 00001-16384
Shaft Size 3/8 in
Family Brand Name Allen Bradley
TC Connection MS 10-Pin w/o Mating Connector,Radial Exit
Output 4.5-5.5 V Line Driver (TTL)
Voltage 4.5-5.5 Volt
Mounting Type Standard Servo Mount
Standard C-TICK,CE,CUL,UL
Connection Type MS 10-Pin W/o Mating Connector,Radial Exit
