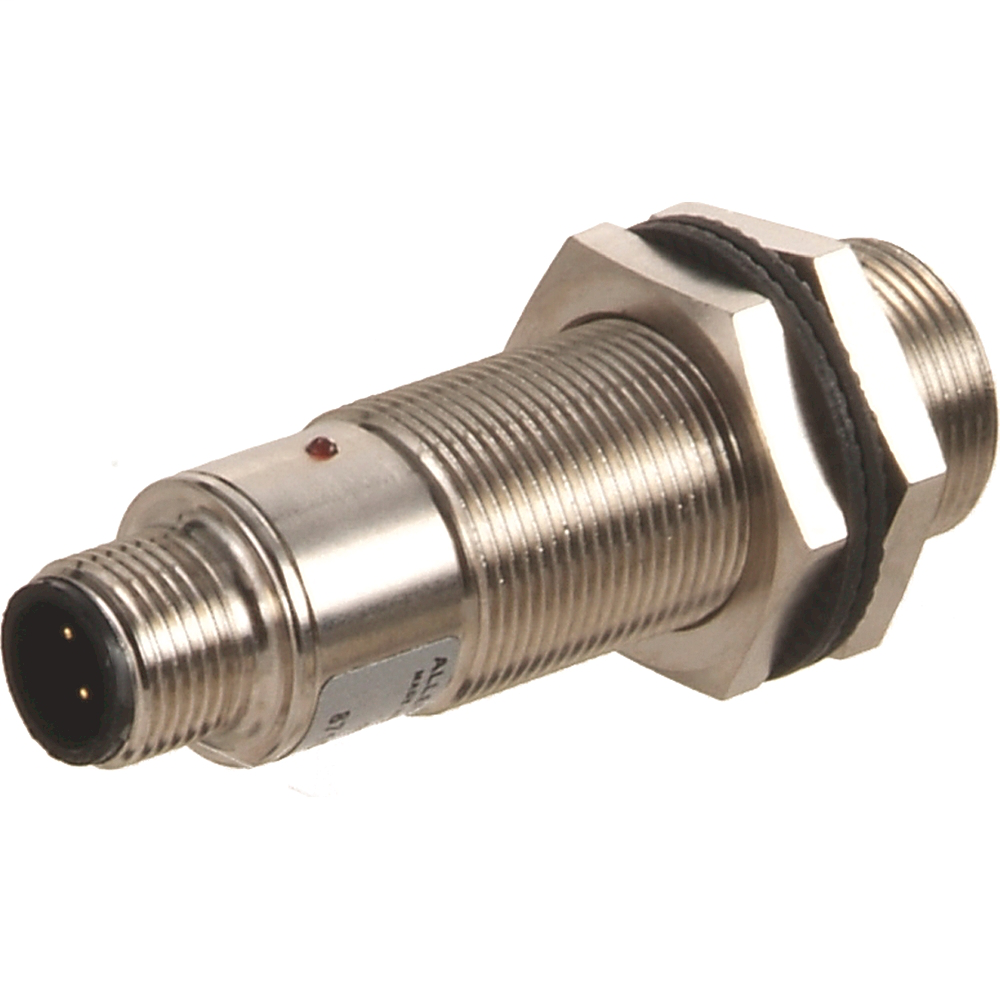

Allen-Bradley 871C-DT15NP30-D4 Miniature Small Barrel Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$231.41/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 871C-DT15NP30-D4
North Coast Part # 16620

Features

  • Current source (PNP), normally open output
  • Applications include:
  • Extended temperature range: -40…100 °C (-40…212 °F)
  • 3-wire operation
  • Short circuit, false pulse, reverse polarity, overload and transient noise protection

Specifications

  • Type: 3-Wire DC, Extended Temperature
  • Special Features: Extended Temperature
  • Sensing Distance: 15mm
  • Output: N.O., Source (PNP)
  • Connection: Micro Quick-Disconnect (DC)

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC, Extended Temperature
  • Barrel Type: Extended Temperature
  • Barrel Diameter: 30mm
  • Nominal Sensing Distance: 15mm
  • Shielding: Unshielded
  • Output Configuration: N.O., Source (PNP)
  • Switching Frequency: 300 [Hz]
  • IO Link Enabled: No
  • Connection Type: Micro Quick-Disconnect (DC)

Categories

Overview

GTiN 00662468282789
Size 30 mm Barrel Diameter
Type Miniature Small Barrel
Barrel Type Extended Temperature
Connection Type 4-Pin DC Micro Quick Disconnect
Barrel Diameter 30 mm
Family Brand Name Allen Bradley
TC Connection 4-Pin Micro QD DC
Output NO Sourcing
Sensing Range 15 mm
Product UPC 66246828278
Blade Dimensions 30 mm dia
Voltage 30 Volt
Standard CCC,CSA,KC
