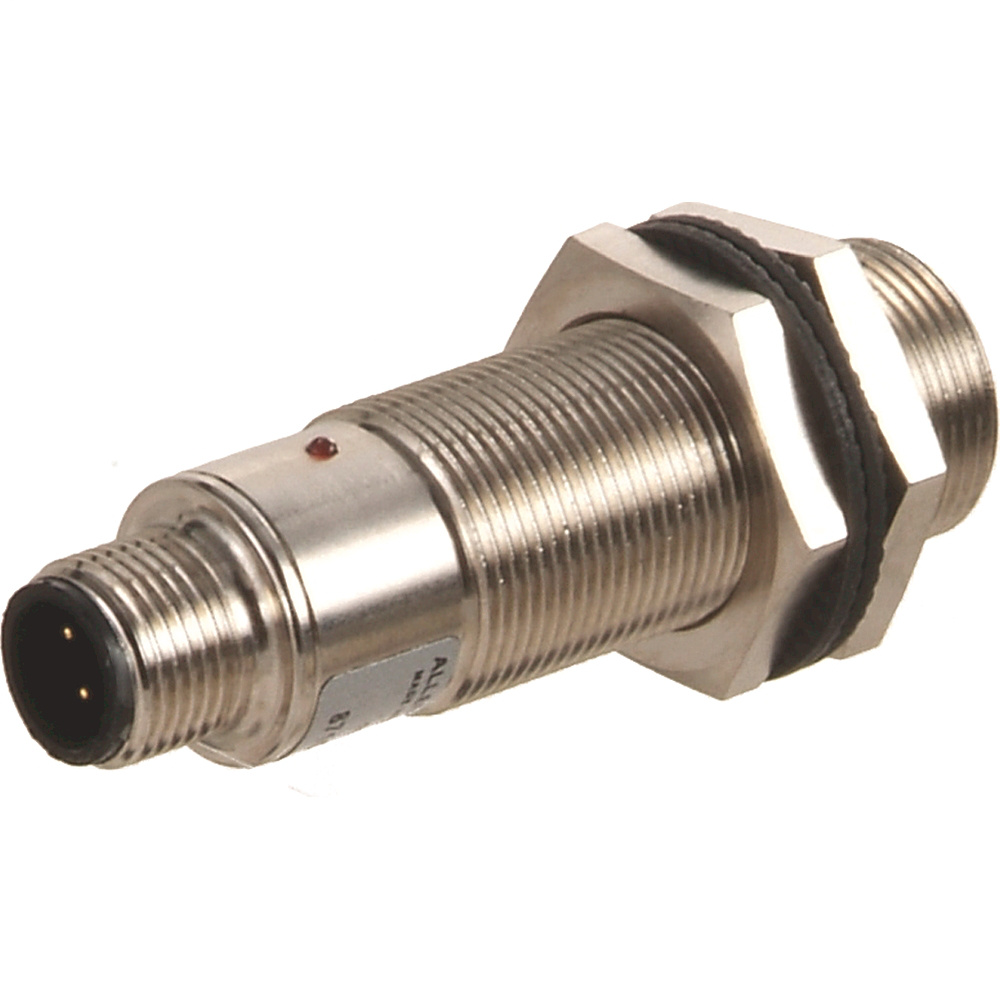

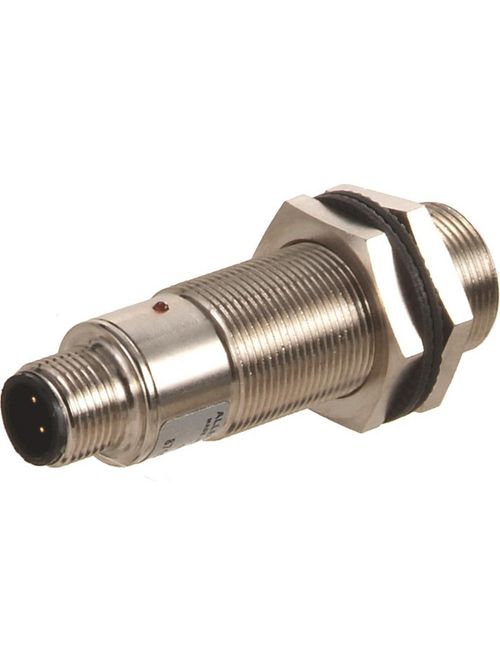

Allen-Bradley 871C-DT15NP30-U2 Miniature Small Barrel Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871C-DT15NP30-U2
North Coast Part # 18087


  • Applications include:
  • Extended temperature range: -40…100 °C (-40…212 °F)
  • 3-wire operation
  • Current source (PNP), normally open output
  • Short circuit, false pulse, reverse polarity, overload and transient noise protection


  • Type: 3-Wire DC, Extended Temperature
  • Special Features: Extended Temperature
  • Sensing Distance: 15mm
  • Output: N.O., Source (PNP)
  • Connection: PUR

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC, Extended Temperature
  • Barrel Type: Extended Temperature
  • Barrel Diameter: 30mm
  • Nominal Sensing Distance: 15mm
  • Shielding: Unshielded
  • Output Configuration: N.O., Source (PNP)
  • Switching Frequency: 300 [Hz]
  • IO Link Enabled: No
  • Connection Type: PUR


UPC 66246828224
Item Long Description Miniature Small Barrel Inductive Sensor
GTiN 00662468282246
Size 30 mm Barrel Diameter
Type Inductive Sensor
Barrel Type Extended Temperature
Connection Type PUR
Barrel Diameter 30 mm
Family Brand Name Allen Bradley
TC Connection PUR Cable 2 m
Output Normally Open Sourcing
Sensing Range 15 mm
Voltage 30 Volt
Standard CCC,KC
