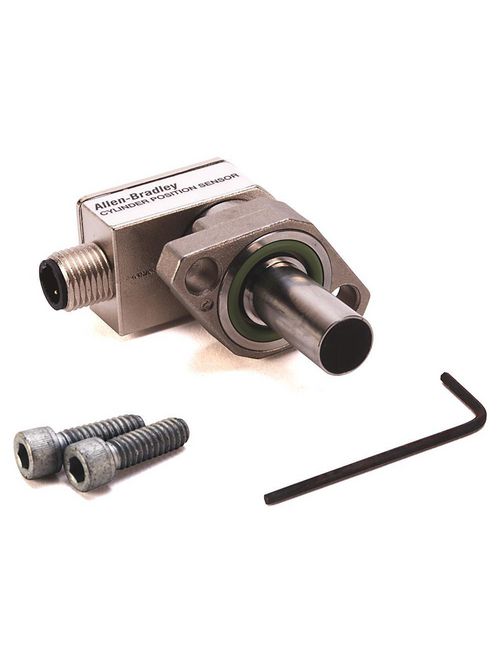

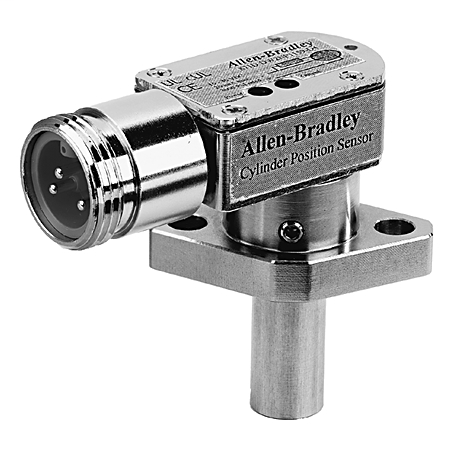

Allen-Bradley 871D-DW2NP317-D4 Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
$307.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871D-DW2NP317-D4
North Coast Part # 546635

Features

  • Low profile housing can be rotated 304° without breaking pressure seal
  • 3-wire DC and 2-wire AC/DC versions with either mini- or micro-style connectors
  • Short circuit, overload, transient noise, false pulse and reverse polarity protection
  • Stainless steel probe with ceramic face
  • Withstands pressures up to 3000 psi
  • Weld field immune
  • Applications include:
  • Shielded construction

Specifications

  • Output: N.O., Source (PNP)
  • Voltage Rating: 10-30 V DC

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC
  • ProbeLength: 31.7mm, White Color Code
  • Output Configuration: N.O., Source (PNP)
  • Connection Type: Micro Quick-Disconnect (DC)

Categories

Overview

UPC 66246896124
GTiN 00662468961240
Size 31.7 mm Probe Length
Voltage 10-30 Volt
Type Inductive Sensor
Connection Type Micro Quick-Disconnect
Family Brand Name Allen Bradley
TC Connection 4 Pin DC Micro QD,4-pin DC Micro
Output Normally Open Sourcing
Standard CCC,KC
Sensing Range 2 mm
