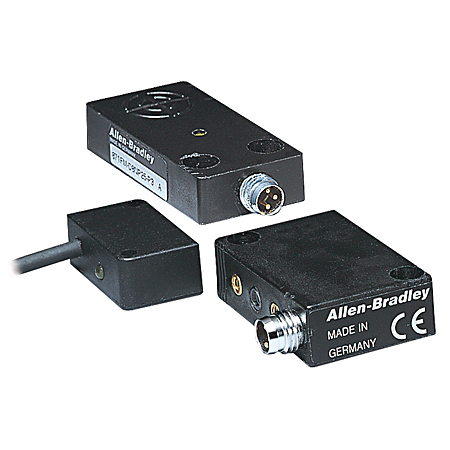

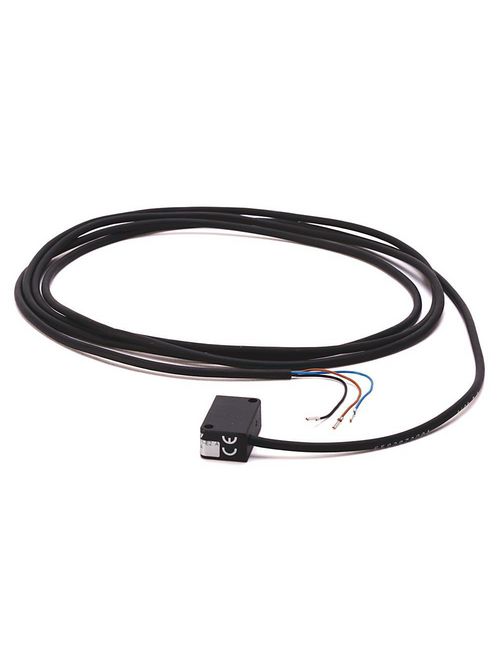

Allen-Bradley 871FM-D2NP11-P3 Miniature Rectangular Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871FM-D2NP11-P3
North Coast Part # 68280


  • Offers extended range sensing for metal versions allows mounting further away from target which reduces chance of impact and related damage
  • Offers rugged full stainless steel models that provide Factor-1 equal sensing / weld field immunity for tough applications
  • Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity


  • Output: N.O., Source (PNP)

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC Plastic Housing
  • Sensor Size: 28x16x11mm
  • Voltage Type: 10-30 V DC
  • Nominal Sensing Distance: 2mm
  • Shielding: Shielded
  • Barrel Type: Rectangular, Standard
  • Output Configuration: N.O., Source (PNP)
  • Switching Frequency (Hz): 600 Hz
  • IO Link Enabled: No
  • Connection Type: Pico Quick-Disconnect


UPC 66246863097
Item Long Description Miniature Rectangular Inductive Sensor
GTiN 00662468630979
Size 28x16x11 mm Housing Dimensions
Type Miniature Flat Pack, Standard, Shielded
Barrel Type Rectangular,Standard
Connection Type Pico Quick-Disconnect
Family Brand Name Allen Bradley
TC Connection 2 m 3-Pin Pico Quick Disconnect, 3-Pin Pico Threaded
Output Normally Open Sourcing
Sensing Range 2 mm
Material Plastic
Temperature Rating -25 to 70 C
Shape Rectangle
Blade Dimensions 28 x 16 x 11 mm
Operating Frequency 600 Hz
Maximum Load Current 200 mA
