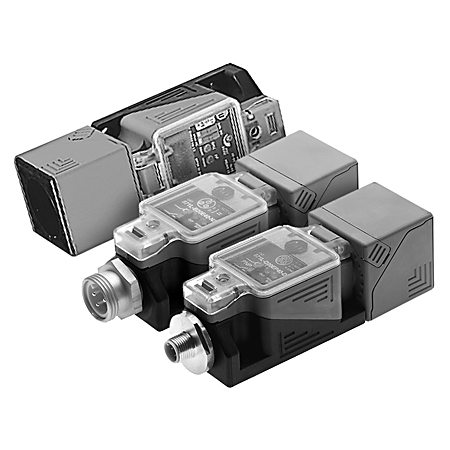

Allen-Bradley 871L-D20EN40-D4 Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871L-D20EN40-D4
North Coast Part # 70876


  • Side-sensing head can be locked in any of 16 positions
  • Selectable normally open or normally closed output
  • 17 sensing head positions (1 top, 16 side)
  • Side-sensing head can be rotated in 22.5° increments
  • Short circuit, overload, transient noise, false pulse and reverse polarity protection
  • Applications include:


  • Output: N.O. or N.C. Selectable, Sink (NPN)
  • Enclosure: Limit Switch Style Plastic
  • Voltage Rating: 10-60V DC

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC
  • Nominal Sensing Distance: 20mm
  • Shielding: Shielded
  • Output Configuration: N.O. or N.C. Selectable, Sink (NPN)
  • Connection Type: Micro Quick-Disconnect (DC)


UPC 66246844612
Item Long Description Inductive Sensor, Limit Style Inductive Sensor, 40 mm, DC, 20 mm Sensing Distance, DC 1 NOC & 1 NCC Sinking, DC Micro Quick Disconnect
GTiN 00662468446129
Size 40 mm
Voltage 10-60 Volt
Type Inductive Sensor
Connection Type Micro Quick-Disconnect
Family Brand Name Allen Bradley
TC Connection DC Micro Quick Disconnect,4-pin DC Micro
Output DC 1 NOC & 1 NCC Sinking
Standard KC
Sensing Range 20 mm
