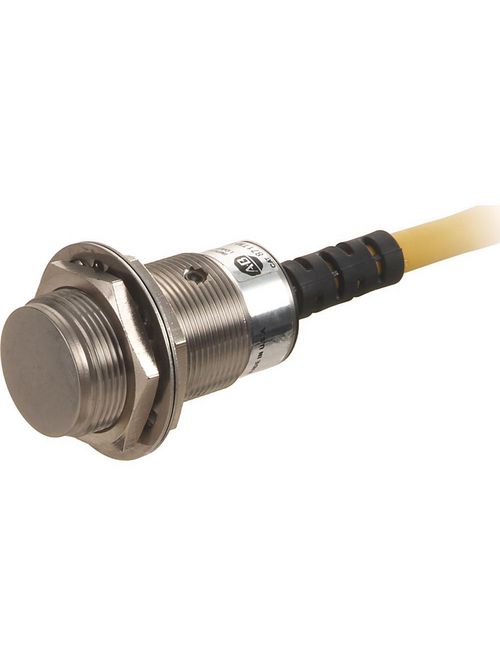

Allen-Bradley 871TM-B10N30-H2 Metal Face Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871TM-B10N30-H2
North Coast Part # 833


  • 1200 psi washdown
  • Incorporates embedded IO-Link communication protocol in select 871TM sensors to help minimize downtime and increase productivity
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Sensing modes available: standard and extended/equal range
  • Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection


  • Output: N.O.
  • Cable Length: 2 Meter
  • Voltage Rating: 20 - 250V AC/DC

Proximity Sensor Data

  • Proximity Sensor Type: 2-Wire AC/DC
  • Barrel Diameter: 30mm
  • Nominal Sensing Distance: 10mm
  • Shielding: Shielded
  • Output Configuration: N.O.
  • Connection Type: ToughLink Cable, (#18 AWG)
  • Connection Type Part Number Position 2 for Proximity Sensors: 2


UPC 66207389286
Item Long Description Metal Face Inductive Sensor
GTiN 00662073892861
Size 30 mm Barrel Diameter
Voltage 250 Volt
Type Cylinder, Screw-Thread, Metallic Target
Material Metal
Mounting Type Concise
Connection Type Cable
Barrel Diameter 30 mm
Family Brand Name Allen Bradley
TC Connection 2 M 18 AWG ToughLink
Output Normally Open
Cable Length 2 m
Blade Dimensions 30 mm dia x 77.2 mm L
Operating Frequency 15 Hz
Maximum Load Current 250 mA
Sub Brand Metal Face
Standard CSA,KC
Sensing Range 10 mm
