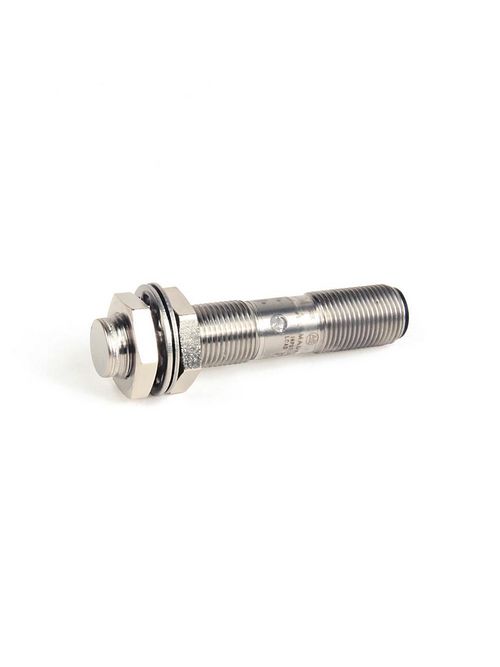

Allen-Bradley 871TM-BH5N18-A2 Metal Face Inductive Sensor
Product image thumbnail 0
Product image thumbnail 1
$162.47/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871TM-BH5N18-A2
North Coast Part # 218447

Features

  • 1200 psi washdown
  • Short circuit, overload, transient noise, false pulse, reverse polarity and radio frequency interference protection
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Incorporates embedded IO-Link communication protocol in select 871TM sensors to help minimize downtime and increase productivity
  • Sensing modes available: standard and extended/equal range

Specifications

  • Output: N.O.
  • Cable Length: 2 Meter
  • Voltage Rating: 20 - 250V AC/DC

Proximity Sensor Data

  • Proximity Sensor Type: 2-Wire AC/DC (PLC Interfacer)
  • Barrel Diameter: 18mm
  • Nominal Sensing Distance: 5mm
  • Shielding: Shielded
  • Output Configuration: N.O.
  • Connection Type: 3-Wire DC PVC Cable (3 Conductors)
  • Connection Type Part Number Position 2 for Proximity Sensors: 2

Overview

UPC 66246847235
GTiN 00662468472357
Size 18 mm Barrel Diameter
Voltage 250 Volt
Type Cylinder, Screw-Thread, Metallic Target
Mounting Type Concise
Connection Type Cable
Barrel Diameter 18 mm
Family Brand Name Allen Bradley
TC Connection 2 M PVC Cable
Output Normally Open
Cable Length 2 m
Blade Dimensions 18 mm dia x 55.4 mm L
Operating Frequency 65 Hz
Maximum Load Current 25 mA
Sub Brand Metal Face
Standard C-TICK,CE,CSA,CUL,KC,UL
Sensing Range 5 mm
