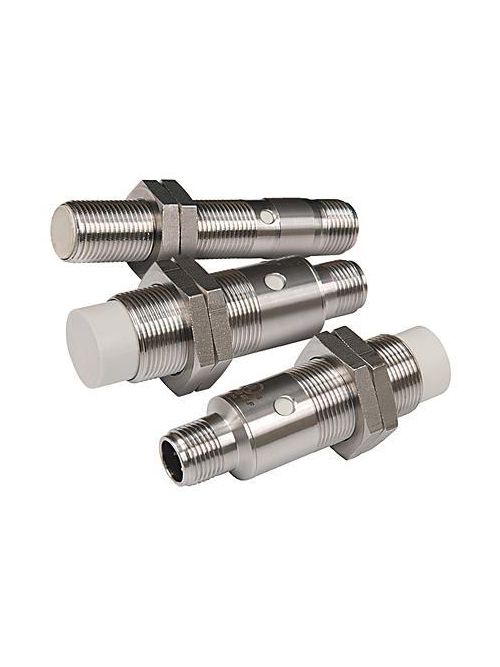

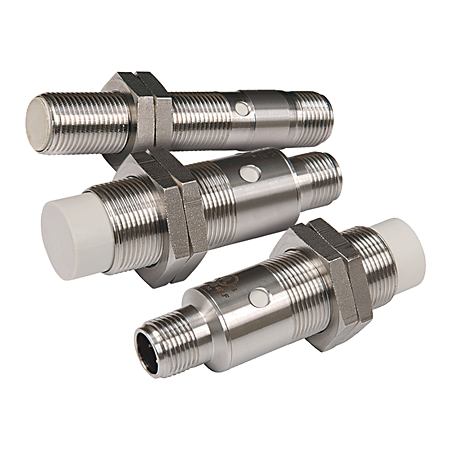

A-B 871TS-D8BP18-D4 871TS Inductive
Product image thumbnail 0
Product image thumbnail 1
$154.61/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 871TS-D8BP18-D4
North Coast Part # 1161897

Features

  • FDA Certified, PPS sensing face
  • 4-wire operation, complementary N.O. and N.C. outputs
  • IP67, IP68 and IP69K enclosure ratings
  • Stainless steel 316L barrel
  • Applications include:

Specifications

Proximity Sensor Data

  • Body Style: Threaded Stainless Steel 316L Barrel
  • Sensing: Standard Sensing (Unshielded)
  • Nominal Sensing Distance: 8mm (0.31 in.)
  • Output Configuration: N.O. and N. C., Source (PNP)
  • Barrel Diameter: 18mm
  • Connection Type: Micro Quick-Disconnect (DC)

Overview

UPC 61259877500
GTiN 00612598775002
Type Threaded, Shielded
Applications Food and Beverage
Connection Type DC Micro Quick Disconnect
Barrel Diameter 18 mm
Family Brand Name Allen Bradley
Sensing Range 0.70 in
Enclosure Tubular, Stainless Steel
Sub Brand Rockwell
Material Stainless Steel
Temperature Rating -40 to 80 C
Output Normally Open and Normally Closed (PNP)
Blade Dimensions 18 mm dia
Maximum Load Current 200 mA
Standard CCC,KC
