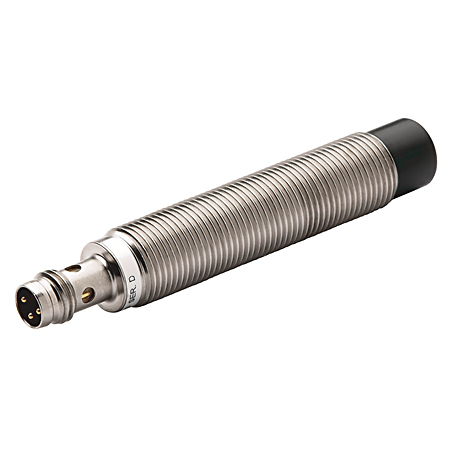

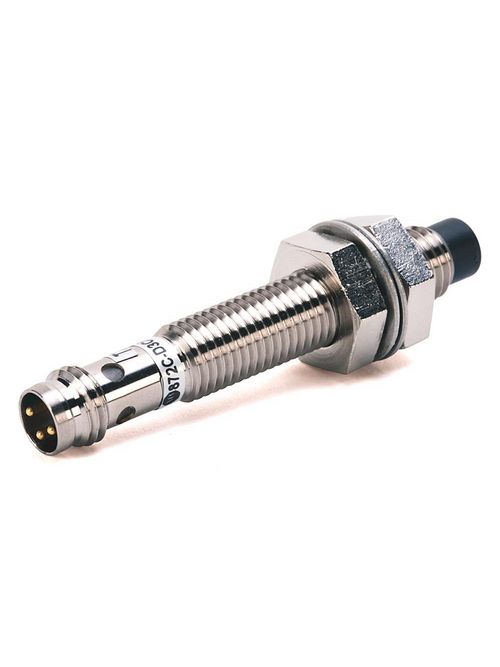

Allen-Bradley 872C-D3NN8-P3 Inductive Proximity Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$102.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 872C-D3NN8-P3
North Coast Part # 63419

Features

  • Includes highly-visible status indicator
  • Applications include:
  • Includes threaded, nickel-plated brass barrels
  • Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection

Specifications

  • Application: 3-Wire DC
  • Sensing Distance: 3mm
  • Special Features: Standard
  • Output: N.O., Sink (NPN)
  • Connection: Pico Quick-Disconnect
  • Voltage Rating: 10 - 30V DC

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC
  • Barrel Diameter: 8mm
  • Nominal Sensing Distance: 3mm
  • Shielding: Unshielded
  • Barrel Type: Standard
  • Output Configuration: N.O., Sink (NPN)
  • Connection Type: Pico Quick-Disconnect

Categories

Overview

UPC 66207275237
Item Long Description 8 mm Barrel Inductive Prox Sensor
GTiN 00662072752371
Size 8 mm Barrel Diameter
Voltage 30 Volt
Type Standard Barrel
Barrel Type Standard
Applications For DC Standard
Connection Type Pico Quick-Disconnect
Barrel Diameter 8 mm
Family Brand Name Allen Bradley
TC Connection 3-Pin DC Pico Quick Disconnect
Output Normally Open Sinking
Sensing Range 3 mm
Standard CCC,CE,CUL,KC,RCM,UL
Material Nickel Plated Brass
Blade Dimensions 8 mm dia
