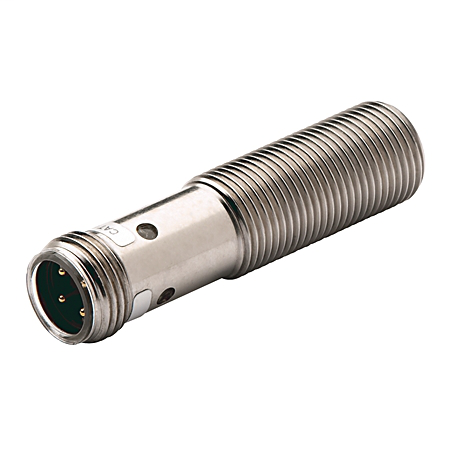

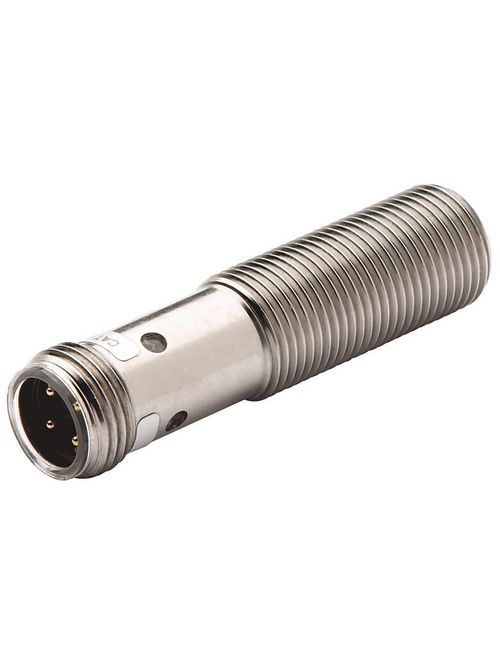

Allen-Bradley 872C-DH8NP18-D4 Inductive Proximity Sensor
Product image thumbnail 0
Product image thumbnail 1
$90.53/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 872C-DH8NP18-D4
North Coast Part # 16258

Features

  • Includes highly-visible status indicator
  • Applications include:
  • Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection
  • Includes threaded, nickel-plated brass barrels

Specifications

  • Application: 3-Wire DC Short Barrel
  • Sensing Distance: 8mm
  • Special Features: Short
  • Output: N.O., Source (PNP)
  • Connection: Micro Quick-Disconnect (DC)
  • Voltage Rating: 10 - 30V DC

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC Short Barrel
  • Barrel Diameter: 18mm
  • Nominal Sensing Distance: 8mm
  • Shielding: Unshielded
  • Barrel Type: Short
  • Output Configuration: N.O., Source (PNP)
  • Connection Type: Micro Quick-Disconnect (DC)

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Accessories

  • 889D-F4AC-5

Overview

UPC 66246827784
GTiN 00662468277846
Size 18 mm Barrel Diameter
Voltage 30 Volt
Type Cylinder, Screw-Thread, Metallic Target, Barrel
Barrel Type Short
Material Metal
Applications DC Standard
Mounting Type Concise
Connection Type Plug-in
Barrel Diameter 18 mm
Family Brand Name Allen Bradley
TC Connection 4 Pin DC Micro QD
Output Normally Open
Blade Dimensions 18 mm dia x 59.7 mm L
Sensing Range 8 mm
Maximum Load Current 200 mA
Standard C-TICK,CCC,CE,CUL,KC,RCM,UL
