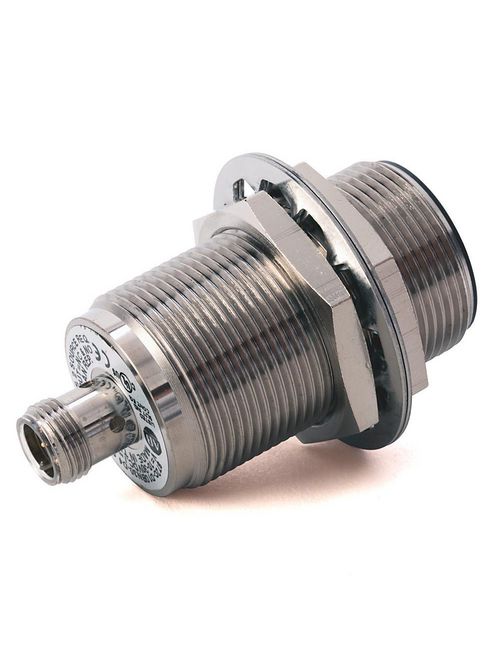

Allen Bradley 872C-M22NP30-D4 Inductive Proximity Sensor
Product image thumbnail 0
Product image thumbnail 1
$148.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 872C-M22NP30-D4
North Coast Part # 762203

Features

  • Includes threaded, nickel-plated brass barrels
  • Includes highly-visible status indicator
  • Applications include:
  • Provides short circuit, overload, transient noise, false pulse, and reverse polarity protection

Specifications

  • Application: 3-Wire DC Long Range
  • Sensing Distance: 22mm
  • Special Features: Standard
  • Output: N.O., Source (PNP)
  • Connection: Micro Quick-Disconnect (DC)
  • Voltage Rating: 10 - 30V DC

Proximity Sensor Data

  • Proximity Sensor Type: 3-Wire DC Long Range
  • Barrel Diameter: 30mm
  • Nominal Sensing Distance: 22mm
  • Shielding: Shielded
  • Barrel Type: Standard
  • Output Configuration: N.O., Source (PNP)
  • Connection Type: Micro Quick-Disconnect (DC)

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Accessories

  • 889D-F4AC-5

Overview

UPC 61259886107
GTiN 00612598861071
Size 30 mm Barrel Diameter
Voltage 30 Volt
Type Shielded
Barrel Type Standard
Connection Type DC Micro (M12) Quick Disconnect
Barrel Diameter 30 mm
Family Brand Name Allen Bradley
TC Connection 4-Pin DC Micro QD
Output Normally Open Sourcing
Sensing Range 22 mm
Color Nickel Plated
Material Brass
Temperature Rating -13 to 158 F
Shape Tubular
Blade Dimensions 30 mm dia
Maximum Load Current <= 200 mA
Sub Brand WorldProx
Standard CUL,KC,UL
