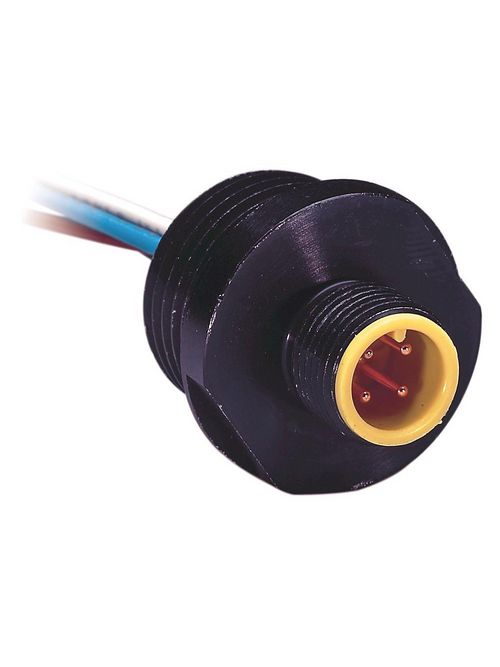

Allen-Bradley 888D-M4AC1-1 DC Micro M12 Receptacle

Specifications

• Color: IEC Standard Color Code (European)

Sensor End Data - Female

• Female End Termination: Cable
• Number of Pins: Same as Male End
• Female Connector Style: No Connector

I/O End Data - Male

• Male End Termination: DC Micro (M12)
• Number of Pins: 4-Pin
• Male Connector Style: Male, Straight

Receptacle Data

• Hardware Material: Black Anodized Machined Aluminum
• Wire Size: 22AWG
• Cable Color Code: IEC Standard Color Code (European)
• Panel Mount Thread Size: 1/2" 14NPT

Special Characteristics

• Special Characteristics: Standard

Length Data

• Units: Meters
• Standard or Build-to-Order Cable Length: 1 meter (3.28 feet)

Notes

• Pin Layout (Female End): Flying Lead Color Codes:
• Pin Layout (Male End): Pinout:

Features

• Reduce installation cost
• Includes standard 12-inch lead (additional lengths available)
• Promote system modularity
• Female receptacles can be used for a panel mount connection
• Includes a connector shell design that accommodates threaded male connector types only
• Includes PG9
• Includes 22 AWG conductors
• Provides 12-pin configuration provides standard connectivity
• Includes male and female bulkhead receptacles
• One piece molded design construction
• Provide for Safety PLC input expansion
• Connectors are straight or right-angled and are physically keyed to prevent wiring mishaps
• Simplify troubleshooting
• Cabling options include cordsets and patchcords
• Includes 1/2 in. 14 NPT threads
• Includes M20 x 1.5 mounting threads for convenient mounting to safety switches
• Control power tees offer flexibility in system design
• Includes anodized aluminum shell
• Allows easy modification of existing cable installations
• Includes M8 x 0.5 mounting threads for convenient installation
• Includes female bulkhead receptacles
• Support systems up to Category 3 (per EN954-1)
• Includes mounting nut and rubber sealing washer
• Includes 16 AWG conductors
• Provides a Viton® o-ring
• Allows field installation with no hand tools needed
• Includes standard 22 AWG conductors
• Includes female and male bulkhead receptacles
• Male receptacles can be used for a quick disconnect at the ArmorStart® Distributed Motor Controller with gland plate design
• Provides standard US automotive color code
• Ease system expansion
• Includes I.E.C. color code
• Receptacles provide termination points at the panel and at the ArmorStart® Distributed Motor Controller
