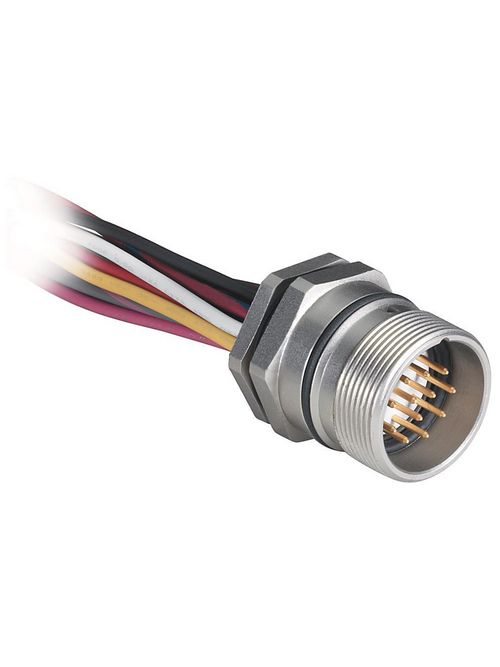

Allen-Bradley 888M-M19AE-12F M23 Receptacle

Specifications

Sensor End Data - Female

• Female End Termination: Cable
• Number of Pins: Same as Male End
• Female Connector Style: No Connector

I/O End Data - Male

• Male End Termination: M23
• Number of Pins: 19-Pin
• Male Connector Style: Male, Straight

Receptacle Data

• Hardware Material: Black Anodized Machined Aluminum
• Wire Size: 18AWG
• Cable Color Code: IEC Standard Color Code (European)
• Panel Mount Thread Size: Same as First End

Special Characteristics

• Special Characteristics: Standard

Length Data

• Units: Feet
• Standard or Build-to-Order Cable Length: 12 feet (3.66 meters)

Notes

• Pin Layout (Female End): Flying Lead Color Codes:
• Pin Layout (Male End): Pinout:
