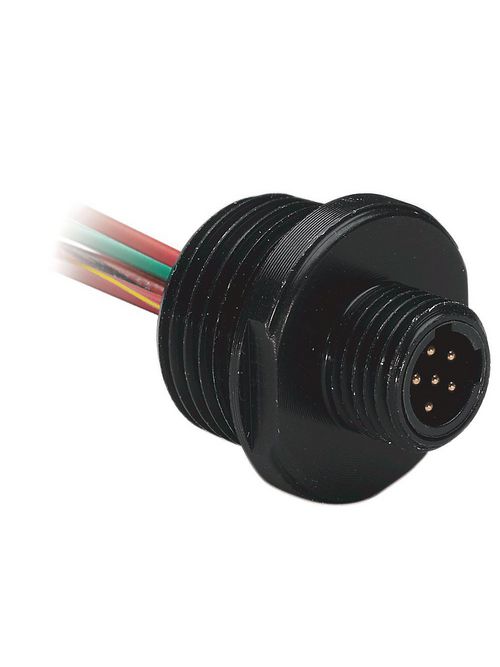

Allen-Bradley 888R-M6AC1-1F AC Micro Dual Key Male Straight 6-Pin 22 AWG 1 Foot Receptacle
Product image thumbnail 0
Product image thumbnail 1
$31.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 888R-M6AC1-1F
North Coast Part # 424623

Features

  • Includes M20 x 1.5 mounting threads for convenient mounting to safety switches
  • Control power tees offer flexibility in system design
  • Allows easy modification of existing cable installations
  • Provide for Safety PLC input expansion
  • Includes standard 12-inch lead (additional lengths available)
  • Simplify troubleshooting
  • Connectors are straight or right-angled and are physically keyed to prevent wiring mishaps
  • Promote system modularity
  • Includes standard 22 AWG conductors
  • Allows field installation with no hand tools needed
  • Includes 22 AWG conductors
  • Cabling options include cordsets and patchcords
  • Provides a Viton® o-ring
  • Includes 1/2 in. 14 NPT threads
  • Includes female bulkhead receptacles
  • Male receptacles can be used for a quick disconnect at the ArmorStart® Distributed Motor Controller with gland plate design
  • Includes I.E.C. color code
  • Includes female and male bulkhead receptacles
  • Provides standard US automotive color code
  • Provides 12-pin configuration provides standard connectivity
  • Includes PG9
  • Support systems up to Category 3 (per EN954-1)
  • Includes anodized aluminum shell
  • Includes 16 AWG conductors
  • Female receptacles can be used for a panel mount connection
  • Includes a connector shell design that accommodates threaded male connector types only
  • Receptacles provide termination points at the panel and at the ArmorStart® Distributed Motor Controller
  • One piece molded design construction
  • Reduce installation cost
  • Includes mounting nut and rubber sealing washer
  • Includes male and female bulkhead receptacles
  • Ease system expansion
  • Includes M8 x 0.5 mounting threads for convenient installation

Specifications

  • Color: IEC Standard Color Code (European)

Sensor End Data - Female

  • Female End Termination: Cable
  • Number of Pins: Same as Male End
  • Female Connector Style: No Connector

I/O End Data - Male

  • Male End Termination: AC Micro (Dual Key)
  • Number of Pins: 6-Pin
  • Male Connector Style: Male, Straight

Receptacle Data

  • Hardware Material: Black Anodized Machined Aluminum
  • Wire Size: 22AWG
  • Cable Color Code: IEC Standard Color Code (European)
  • Panel Mount Thread Size: 1/2" 14NPT

Special Characteristics

  • Special Characteristics: Standard

Length Data

  • Units: Feet
  • Standard or Build-to-Order Cable Length: 1 feet (0.3 meters)

Notes

  • Pin Layout (Female End): Flying Lead Color Codes:
  • Pin Layout (Male End): Pinout:

Overview

UPC 61132059960
GTiN 00611320599602
Length 1 ft
Type Straight, Dual Key
Material Aluminum
Number of Conductors 6-Pin
Conductor Size 22 AWG PVC
Applications 1/2 x 14 NPT
Wire Size 22 AWG
Connection Type AC Micro, 1/2 x 14 NPT Straight Male
Number of Pins 6
Family Brand Name Allen Bradley
TC Connection AC Micro (Dual Key)
Wire Length 0.3 m
Number of Wires 6
Standard CSA
