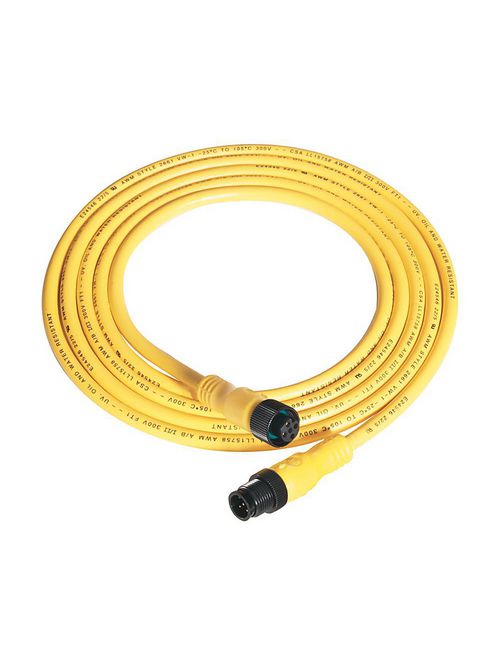

Allen-Bradley 889D-F5ACDM-10 DC Micro Cable
$70.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 889D-F5ACDM-10
North Coast Part # 492351

Features

  • Includes 12-pin/11-conductor on 19-pin for passive distribution and other box applications
  • Includes general purpose 18 AWG cables
  • Includes nickel-plated brass coupling nuts on Pico (M8)
  • Includes ratcheting coupling nut for added vibration resistance
  • Includes patchcords: Cable with integral connector at each end (one male, one female)
  • Offers a one-piece molded body design
  • Includes 12-pin configuration for SafeShield™ light curtains and other applications
  • Includes cordsets: Cable with integral female connector at one end and flying leads at the other
  • Offers red cable jackets to identify safety networks on your machines
  • Includes epoxy-coated zinc coupling nuts which provide durability
  • Provides highly visible yellow polyvinylchloride (PVC) jacket which resists oil and chemicals
  • Includes heavy duty STOOW 16 AWG cables
  • Provides heavy-duty re-enforcing braiding used as a grounded shield reduces noise
  • Provides highly visible yellow polyvinylchloride (PVC) jacket resists oil and chemicals
  • Includes ratcheting coupling nut which resists vibration

Specifications

Sensor End Data - Female

  • Female End Termination: DC Micro (M12)
  • Number of Pins: 5-Pin
  • Female Connector Style: Female, Straight

I/O End Data - Male

  • Male End Termination: DC Micro (M12)
  • Number of Pins: Same as Female End
  • Male Connector Style: Male, Straight

Cord Data

  • Cable Type: PVC Cable, Yellow, Unshielded
  • Wire Size: 22AWG
  • Cable Color Code: IEC Standard Color Code (European)

Special Characteristics

  • Hardware Material: Epoxy coated Zinc
  • Special Characteristics: Standard

Cord Length Data

  • Units: Meters
  • Standard or Build-to-Order Cable Length: 10 meters (32.8 feet)

Notes

  • Pin Layout (Female End): Pinout:
  • Pin Layout (Male End): Pinout:

Overview

UPC 78118002425
GTiN 00781180024252
Length 10 m
Color Yellow
Type DC Micro Cable
Material Zinc
Number of Conductors 5-Pins
Connector Type M12 Male (Plug) Straight x M12 Female (Bus) Straight
Applications Standard Materials
Cable Type Multi-Core
Wire Size 22 AWG
Number of Pins 5
Temperature Rating -20 to 105 C
Family Brand Name Allen Bradley
Connector Material CuZn
Cable Length 10 m
Number of Poles 5 Pole
Voltage null
