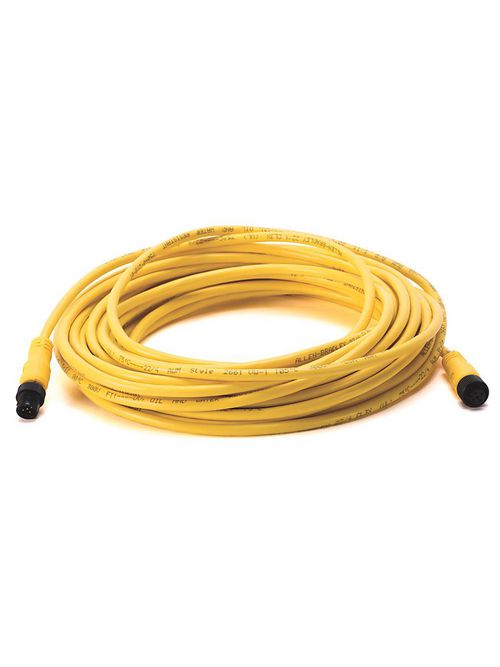

A-B 889D-F5FCDM-J10 889 DC Micro Ca

Features

• Includes ratcheting coupling nut which resists vibration
• Includes general purpose 18 AWG cables
• Includes cordsets: Cable with integral female connector at one end and flying leads at the other
• Includes epoxy-coated zinc coupling nuts which provide durability
• Includes 12-pin/11-conductor on 19-pin for passive distribution and other box applications
• Offers red cable jackets to identify safety networks on your machines
• Includes heavy duty STOOW 16 AWG cables
• Provides heavy-duty re-enforcing braiding used as a grounded shield reduces noise
• Includes ratcheting coupling nut for added vibration resistance
• Includes nickel-plated brass coupling nuts on Pico (M8)
• Provides highly visible yellow polyvinylchloride (PVC) jacket resists oil and chemicals
• Provides highly visible yellow polyvinylchloride (PVC) jacket which resists oil and chemicals
• Includes 12-pin configuration for SafeShield™ light curtains and other applications
• Offers a one-piece molded body design
• Includes patchcords: Cable with integral connector at each end (one male, one female)

Specifications

Sensor End Data - Female

• Female End Termination: DC Micro (M12)
• Number of Pins: 5-Pin
• Female Connector Style: Female, Straight

I/O End Data - Male

• Male End Termination: DC Micro (M12)
• Number of Pins: Same as Female End
• Male Connector Style: Male, Straight

Cord Data

• Cable Type: PVC Cable, Yellow, Foil Shield w/Braid
• Wire Size: 22AWG
• Cable Color Code: IEC Standard Color Code (European)

Special Characteristics

• Hardware Material: Epoxy coated Zinc
• Special Characteristics: Drain Attatched to Pin 5

Cord Length Data

• Units: Meters
• Standard or Build-to-Order Cable Length: 10 meters (32.8 feet)

Notes

• Pin Layout (Female End): Pinout:
• Pin Layout (Male End): Pinout:
