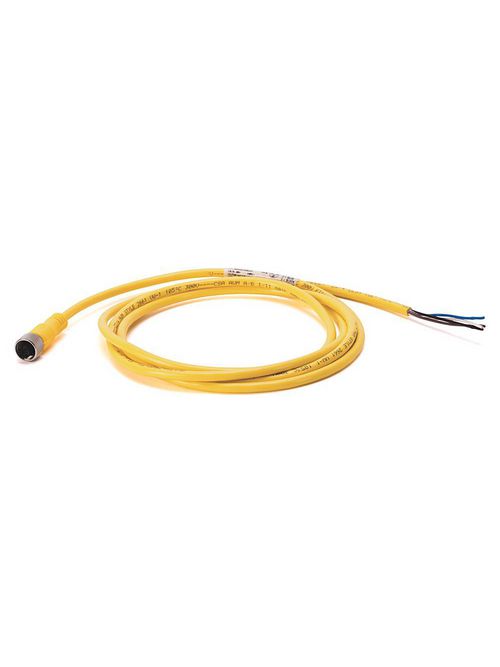

Allen-Bradley 889DS-M8AB-2 889 Patchcords and

Specifications

Sensor End Data - Female

• Female End Termination: Cable
• Number of Pins: Same as Male End
• Female Connector Style: No Connector

I/O End Data - Male

• Male End Termination: DC Micro (M12)
• Number of Pins: 8-Pin
• Male Connector Style: Male, Straight

Cord Data

• Cable Type: PVC Cable, Black, Unshielded
• Wire Size: 24AWG
• Cable Color Code: IEC Standard Color Code (European)

Special Characteristics

• Hardware Material: Stainless Steel
• Special Characteristics: Standard

Cord Length Data

• Units: Meters
• Standard or Build-to-Order Cable Length: 2 meters (6.56 feet)

Notes

• Pin Layout (Female End): Flying Lead Color Codes:
• Pin Layout (Male End): Pinout:
