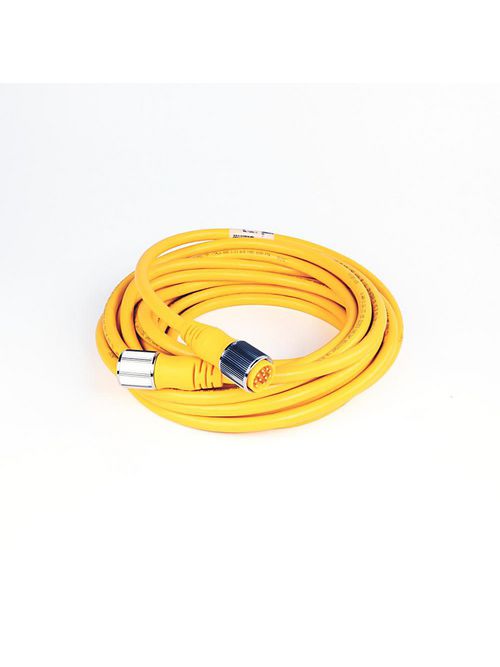

Allen-Bradley 889N-F12AFNU-10 889 Connection

Specifications

Sensor End Data - Female

• Female End Termination: Mini/Mini Plus
• Number of Pins: 12-Pin
• Female Connector Style: Female, Straight

I/O End Data - Male

• Male End Termination: Mini/Mini Plus
• Number of Pins: Same as Female End
• Male Connector Style: Male, Straight (Int. Threads)

Cord Data

• Cable Type: PVC Cable, Yellow, Unshielded
• Wire Size: 16AWG
• Cable Color Code: IEC Standard Color Code (European)

Special Characteristics

• Hardware Material: Aluminum with clear sealant
• Special Characteristics: Standard

Cord Length Data

• Units: Meters
• Standard or Build-to-Order Cable Length: 10 meters (32.8 feet)

Notes

• Pin Layout (Female End): Pinout:
• Pin Layout (Male End): Pinout:
