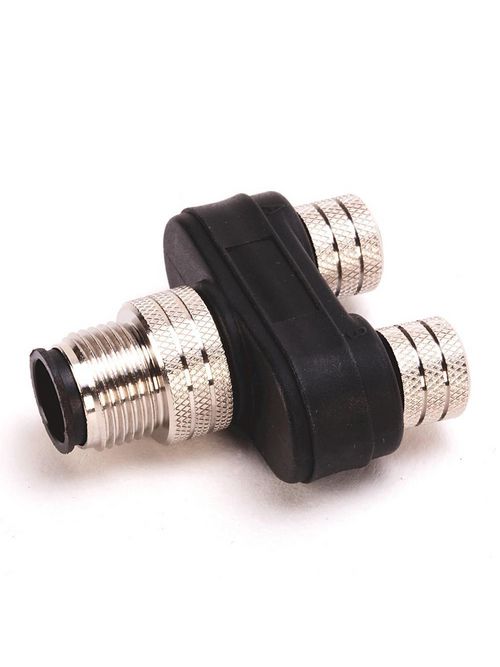

A-B 898P-32YY-DM4 Pico Distribution

Features

• Provides standard wiring models with or without pin 5 designed for use with dual input distribution boxes and IP67 distributed I/O
• Includes ratcheting coupling nut which resists vibration
• Provides highly visible yellow polyvinylchloride (PVC) jacket which resists oil and chemicals
• Provides standard wiring with pin 5 version specifically keyed for MDSA applications
• Includes polyurethane (PUR) body which resists oil and chemicals
• Includes individual power wiring version for use with dual input distributed I/O with point-level diagnostics
• Includes two 3-pin female Pico to one 4-pin DC Micro connector to simplify wiring
• Includes ratcheting coupling nuts that resist vibration
• Includes tap-style wiring version used for DeviceNet™ and micro auxiliary power applications
• Designed for use with Bulletin 198 MDSA AC modules
• Provides polyurethane (PUR) body which resists oil and chemicals
• Includes coiled cords

Specifications

Wiring Style

• Wiring Type: Standard Wiring

Sensor End Data - Female

• Female End Termination: Pico (M8)
• Number of Pins: 3-Pin
• Female Connector Style: Female, Straight

I/O End Data - Male

• Male End Termination: DC Micro (M12)
• Number of Pins: 4-Pin
• Male Connector Style: Male, Straight

Special Characteristics

• Hardware Material: Nickel Plated Brass

Notes

• Pin Layout (Female End): Pinout:
• Pin Layout (Male End): Pinout:
