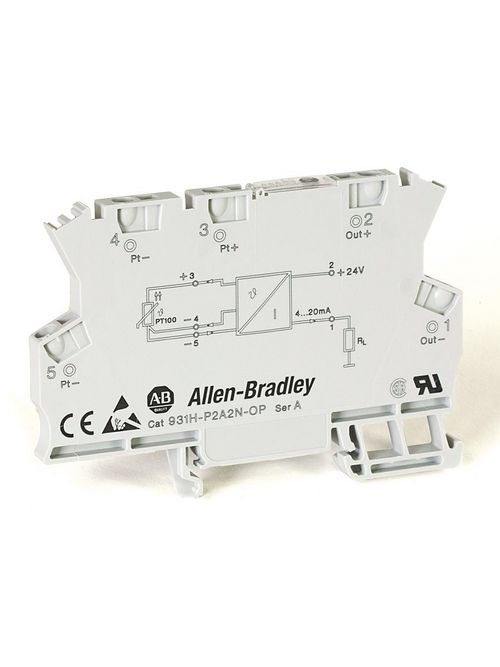

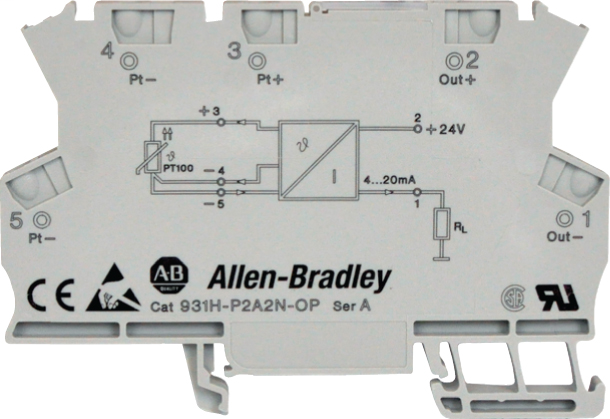

A-B 931H-P2A2N-OP Passive PT100-RTD
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$122.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 931H-P2A2N-OP
North Coast Part # 606899

Specifications

Signal Conditioner Data

  • Family: High Density
  • Input Type: RTD
  • Output Type: Current
  • Output Current Range: 4...20 mA
  • Power Supply: DC Output Loop Powered
  • Device: 931H-P2A2N-OP : Active Converter, PT100/RTD

Important Information

  • Application Note: 931H-EB1 End Barriers are required for 931H-A1A1N-IP and 931H-P2A2N-OP Signal Conditioners.

Categories

Overview

UPC 61259875367
Item Long Description Passive PT100-RTD Signal Converter
GTiN 00612598753673
Width 6 mm
Type PT 100/RTD, 2 or 3-Conductor
Mounting Type DIN Rail
Input Voltage 9 - 30 VDC
Family Brand Name Allen Bradley
Number of Outputs 1
Output Passive
Output Current 4 - 20 mA
Blade Dimensions 6 mm W
Output Signal 4-20 ma
Number of Inputs 1
Standard CCC,CE,CSA,CUL
