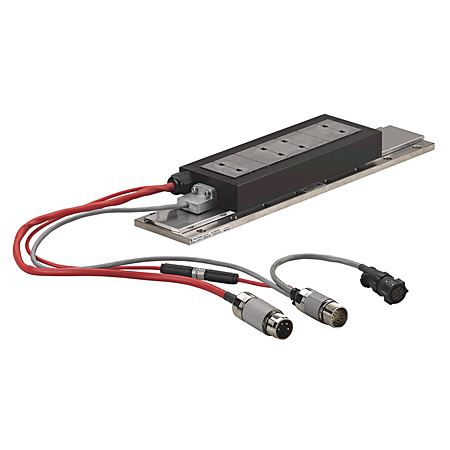

Allen-Bradley LDC-C050300-DHT20 LDC-Series Li
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-PMC
Mfg Catalog # LDC-C050300-DHT20
North Coast Part # 1006587


  • No-wear parts such as bearings, gears, and belts
  • Full setup and programming support through RSLogix™ 5000 software (version 20 or earlier)
  • Connects directly to the payload that needs to be moved
  • Provides very high speeds and acceleration for increased throughput of your machine
  • Achieves precise linear positioning at very high speeds
  • Sizes and optimizes linear motors and corresponding servo drives using Motion Analyzer software
  • Maintains quick movement while handling multiple motion profiles


  • Coil Designation: Standard Coil
  • Winding: D Winding (High Speed)
  • Cable Termination: Flying Leads
  • BulletinNo: LDC - Linear Direct Drive Iron Core
  • Special Features: Hall Effect (Trapezoidal)
  • Frame: 50 Width
  • Length of Coil: 300mm (12.45 in.)
  • Length of Cable: 1000mm (39.37 in.)
  • Thermal Protection: PTC Thermal Sensor and switch


UPC 88495107470
Item Long Description LDC-Series Linear Servomotor Coil
GTiN 00884951074705
Family Brand Name Allen Bradley
