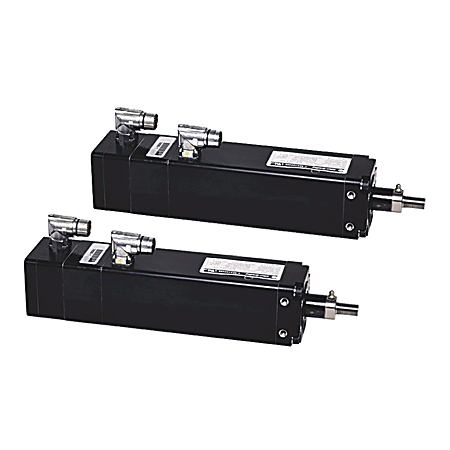

Allen-Bradley MPAI-B3150EM34A MP-Series Heavy
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # MPAI-B3150EM34A
North Coast Part # 931264


  • Full setup and programming support in RSLogix™ 5000 (version 20 or earlier) and UltraWARE software
  • Fully assembled and ready to mount
  • Flexible control (unlike fluid power cylinders)
  • No pipes, valves, air or oil supply required
  • Easy sizing and operating life estimates using Motion Analyzer software
  • Operates without externally mounted limit or home switches
  • Food-grade option


  • Type: MP-Series Heav Duty Electric Cylinder

Product Selection

  • BulletinNo: MP-Series Heav Duty Electric Cylinder
  • ActuatorType: Actuator Rod w/Male Rod End
  • Voltage Rating: 460V AC
  • Actuator Frame Size: 83mm (3.3 in)
  • Rod Stroke Length: 152.4 mm (6.0 in.)
  • Mechanical Drive/Screw Lead/Motor Type: 10.0 mm/rev Ball Screw (0.394 in/rev)
  • Feedback/Motor Series: 1024 SIN/COS Multi-turn ABS Encoder (150...450mm stroke lengths)
  • Holding Brake: 24 VDC Brake
  • Acuator Mounting: Front Face, Side Front, Bottom Front and Rear Tapped Mtg Holes
  • Specifications: Max Feed Force: 4003N (900lbs); Continuous Feed Force: 2002N (450lbs); Max Speed: 559 mm/s(22 in/s)


GTiN 00884951154643
Voltage 460 Volt
Family Brand Name Allen Bradley
Product UPC 88495115464
