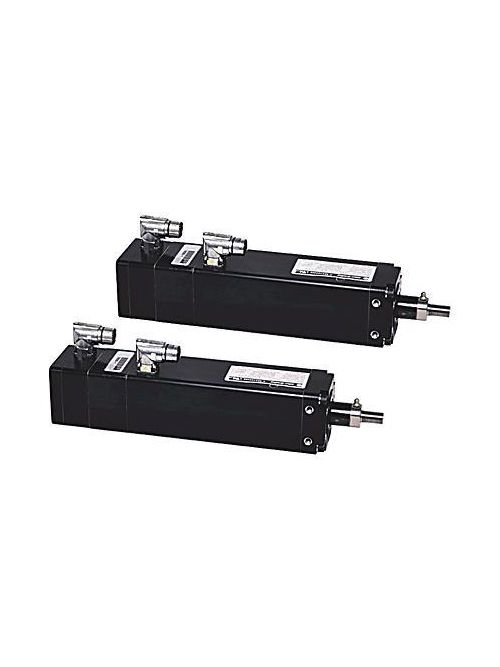

Allen-Bradley MPAI-B4150CM32A MP-Series Heavy
Product image thumbnail 0
Product image thumbnail 1
$5,580.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PMC
Mfg Catalog # MPAI-B4150CM32A
North Coast Part # 666879

Features

  • Full setup and programming support in RSLogix™ 5000 (version 20 or earlier) and UltraWARE software
  • Easy sizing and operating life estimates using Motion Analyzer software
  • No pipes, valves, air or oil supply required
  • Operates without externally mounted limit or home switches
  • Flexible control (unlike fluid power cylinders)
  • Food-grade option
  • Fully assembled and ready to mount

Specifications

  • Type: MP-Series Heav Duty Electric Cylinder

Product Selection

  • BulletinNo: MP-Series Heav Duty Electric Cylinder
  • ActuatorType: Actuator Rod w/Male Rod End
  • Voltage Rating: 460V AC
  • Actuator Frame Size: 110mm (4.4 in)
  • Rod Stroke Length: 152.4 mm (6.0 in.)
  • Mechanical Drive/Screw Lead/Motor Type: 5.0 mm/rev Ball Screw (0.197 in/rev)
  • Feedback/Motor Series: 1024 SIN/COS Multi-turn ABS Encoder (150...450mm stroke lengths)
  • Holding Brake: No Brake
  • Acuator Mounting: Front Face, Side Front, Bottom Front and Rear Tapped Mtg Holes
  • Specifications: Max Feed Force: 8896N (2000lbs); Continuous Feed Force: 7784N (1750lbs); Max Speed: 279 mm/s(11.5 in/s)

Overview

UPC 88495115503
GTiN 00884951155039
Voltage 460 Volt
Family Brand Name Allen Bradley
