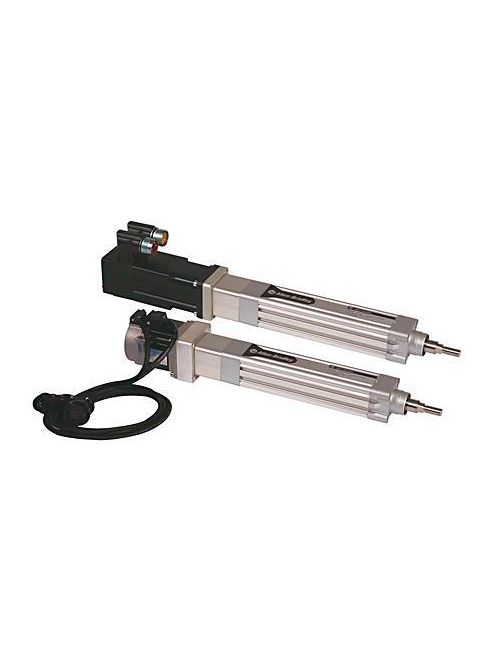

Allen-Bradley MPAR-B1100B-V2A MP Series Elect
Product image thumbnail 0
Product image thumbnail 1
$3,400.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PMC
Mfg Catalog # MPAR-B1100B-V2A
North Coast Part # 598424

Features

  • 100% duty cycle rating
  • Guide rods and rod eyes
  • 32, 40, and 63 ISO15552 pneumatic frame sizes
  • Positioning repeatability of ± 0.02 mm
  • Offer optional DSL converter kit for connecting to Kinetix 5500 drives
  • Provide separate power and feedback cable connections
  • Provide seamless connectivity to Kinetix 5500 drives
  • High resolution absolute feedback
  • Connect with a single cable connection
  • Precision ground ball screws and heavy-duty bearings

Specifications

  • Type: MP-Series Actuator

Product Selection

  • BulletinNo: MP-Series Actuator
  • ActuatorType: Actuator Rod
  • Voltage Rating: 460V AC
  • Actuator Frame Size: Size 32, 45.5 mm (1.8 in)
  • Rod Stroke Length: 100 mm (4.15 in.)
  • Mechanical Drive/Screw Lead/Motor Type: 3.0 mm/rev (0.118 in/rev)
  • Feedback/Motor Series: Multiturn 128 sin/cos ABS Encoder
  • Holding Brake: No Brake
  • Motor Mounting: In-Line
  • Specifications: Max Feed Force: 300N (67lb); Continuous Feed Force: 240N (54lb); Max Speed: 0.15 m/s(5.9 in./s)

Overview

UPC 88495109316
GTiN 00884951093164
Voltage 460 Volt
Family Brand Name Allen Bradley
Size 100 mm Stroke
Type Actuator Rod, In-Line, Frame 32
Material Aluminum Guide
Temperature Rating 0 - 40 C
Blade Dimensions 55 mm W x 445.7 mm D x 94 mm H
