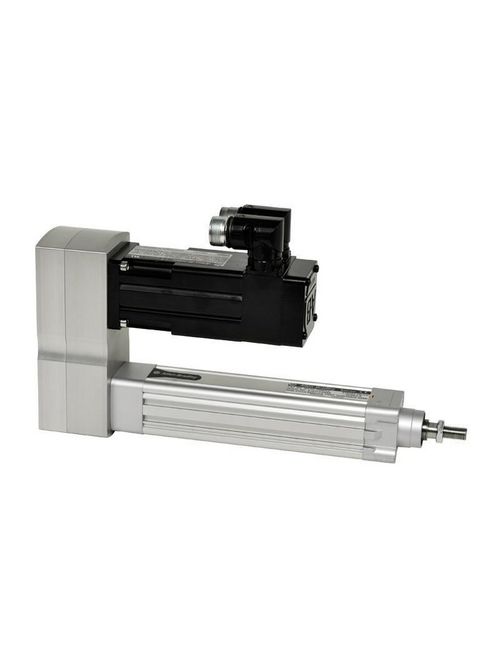

Allen-Bradley MPAR-B2200F-V4B MP Series Elect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-PMC
Mfg Catalog # MPAR-B2200F-V4B
North Coast Part # 999302


  • Provide separate power and feedback cable connections
  • Provide seamless connectivity to Kinetix 5500 drives
  • Offer optional DSL converter kit for connecting to Kinetix 5500 drives
  • High resolution absolute feedback
  • 32, 40, and 63 ISO15552 pneumatic frame sizes
  • Connect with a single cable connection
  • Precision ground ball screws and heavy-duty bearings
  • Guide rods and rod eyes
  • Positioning repeatability of ± 0.02 mm
  • 100% duty cycle rating


  • Type: MP-Series Actuator

Product Selection

  • BulletinNo: MP-Series Actuator
  • ActuatorType: Actuator Rod
  • Voltage Rating: 460V AC
  • Actuator Frame Size: Size 40, 54 mm (2.18 in)
  • Rod Stroke Length: 200 mm (8.3 in.)
  • Mechanical Drive/Screw Lead/Motor Type: 12.7 mm/rev (0.5 in/rev)
  • Feedback/Motor Series: Multiturn 128 sin/cos ABS Encoder
  • Holding Brake: 24 VDC Brake
  • Motor Mounting: Parallel Top
  • Specifications: Max Feed Force: 800N (180lb); Continuous Feed Force: 640N (144lb); Max Speed: 0.65 m/s(25.2 in./s)


UPC 88495117224
Item Long Description MP Series Electric Cylinder
GTiN 00884951172241
Voltage 460 Volt
Family Brand Name Allen Bradley
