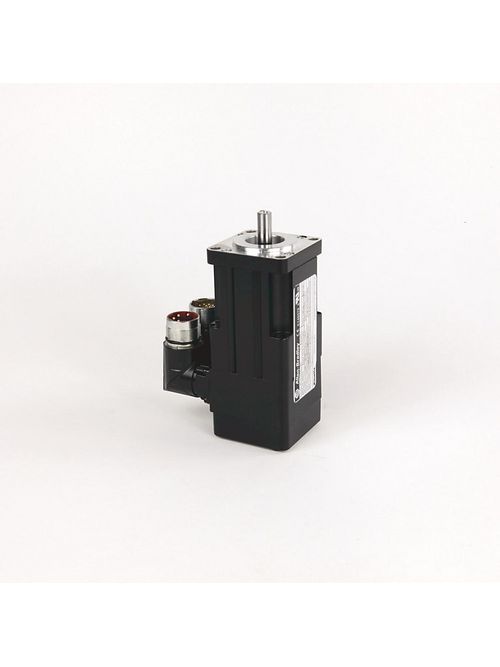

Allen Bradley MPL-A1520U-EJ72AA MP Series 240 Volt AC Rotary Servo Motor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,100.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # MPL-A1520U-EJ72AA
North Coast Part # 819838

Features

  • Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design
  • Continuous stall torque of 0.26…163 Nm (2.3…1440 lb-in.)
  • Integral 24V brake option
  • DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors
  • Peak torque of 0.77…278 Nm (6.8…2460 lb-in.)

Specifications

  • Armature Voltage: 230 V
  • Frame: 15 = 63 mm (2.48 in.)
  • Speed Rating: 7000 RPM

Product Selection

  • Product Type: Bulletin MPL - Low-Inertia Brushless Servo Motors Product
  • Voltage: 230 V
  • Frame Size: 15 = 63 mm (2.48 in.)
  • Magnet Stack Length: 20 = 50.8 mm (2.0 in.)
  • RPM: 7000 RPM
  • Feedback: Single-turn High-resolution Encoder
  • Enclosure: Keyed Shaft Extension
  • Connectors: SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
  • Brake Option: No Brake

Categories

Overview

GTiN 00884951213371
Voltage 230 Volt
Type Rotary
RPM 7000 rpm
Family Brand Name Allen Bradley
Frame 15 = 63 mm (2.48 in.)
TC Connection SpeedTec DIN Connector, Right Angle, 180 Rotatable (Quick Connect)
Enclosure Keyed Shaft Extension
Sub Brand MP-Series
Product UPC 88495121337
Mounting Type IEC Metric, Free Mounting Holes (Type FF)
Standard CE,CUL,KC,UL
